SPC563M64L5 microcontroller

[Dariush.Tsh]

I have 3 documents (DocID14642 Rev 12, Doc ID 13850 Rev 6, DocID14499 Rev 9) from the SPC563M64L5 microcontroller.

Is there a complete datasheet other than these 3 documents from this microcontroller? And if so, what is the method of preparation?

I want to have ports and pin numbers. Information such as clock, commissioning of various microcontroller units, registers and all the necessary information to set up and work with this microcontroller.

[Peter BENSCH]

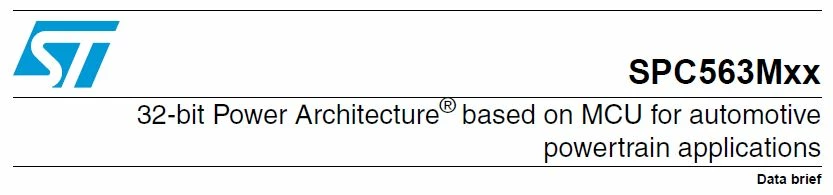

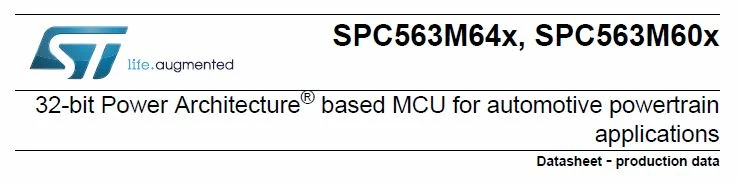

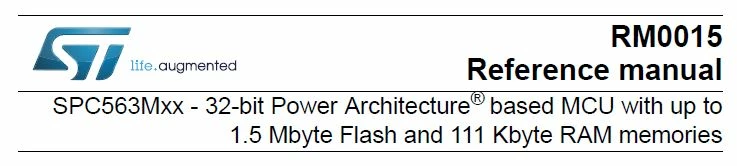

You will find all relevant information on the website of the SPC563M64L5, e.g. the datasheet (your screenshot on the left) and the reference manual (your screenshot on the right).

• port and pin numbers: see datasheet
• commissioning of various microcontroller units: see reference manual and tab Tools & Software
• registers: see reference manual

Good luck!

If the problem is resolved, please mark this topic as answered by selecting Select as best. This will help other users find that answer faster.

/Peter

[Dariush.Tsh]

I want the number of pins and ports of the SPC563M64L5 microcontroller. Please guide me.

[Peter BENSCH]

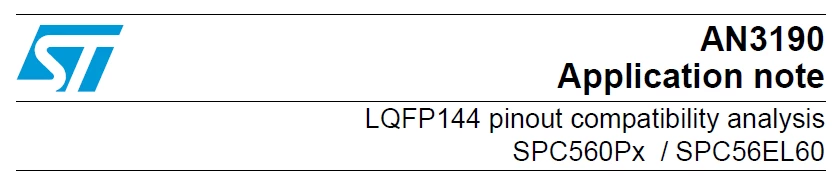

As already mentioned, AN3190 does not apply here.

The GPIO are handled by the SIU and the datasheet says in section 2.3.7:

• GPIO function on 80 I/O pins
• Virtual GPIO on 64 I/O pins via DSPI serialization (requires external deserialization device)

Regards

/Peter
