SPC574S Dead-Time

[Msert.1]

Hello,

1) Where is the reference manual of SPC574S-DISP. I could not find it. What will I take reference for programming?

2) I want to create dead time on my PWM signals. I know how to create a PWM signal. How to add dead time to PWM signals.

Regards,

[Msert.1]

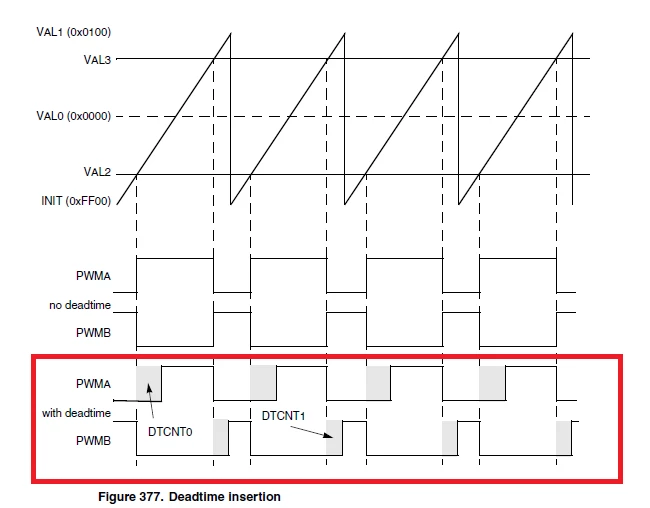

I want to generate signalş like below. On this MCU, how should be my pin configuration and low level flexpwm driver configuration?

Regards,

[Msert.1]

[Msert.1]

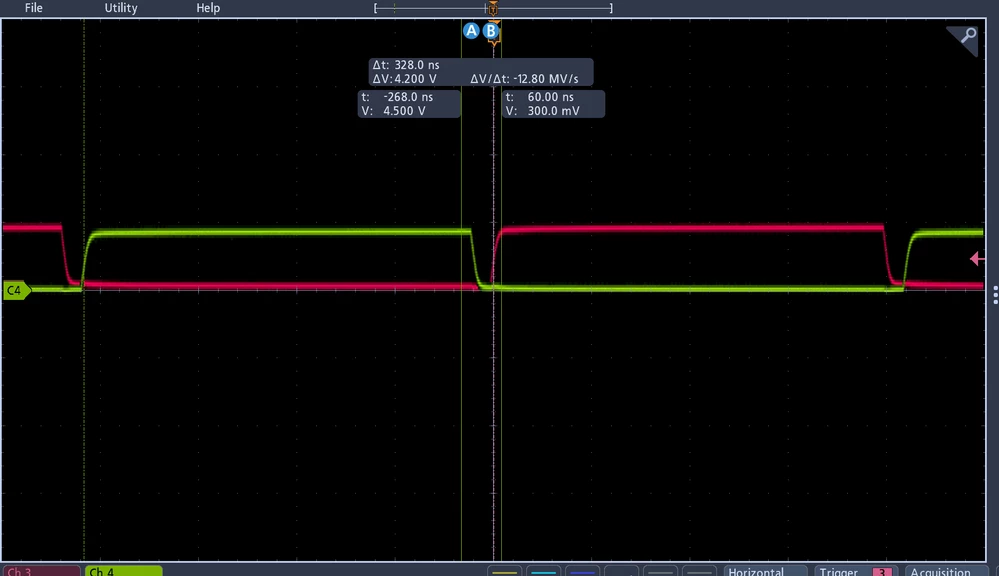

I solved the dead-time issue. Now, I just wanna see the reference manuel of SPC574S.

Regards,
