STELLARLINK vs SPC5-UDESKT

[OHarc.1]

Hello,

​

I've been looking for a debugger to debug and program an SPC58xx MCU and I've found you offer both the new Stellarlink and the SPC5-UDESKT. I understand the SPC5-UDESKT requires a licence to be used with the Universal Debug Engine (UDE) which are available as either a year licence or a one-time purchase. I was wondering if I would also need one of these licences to use the Stellarlink with the UDE/SPC5Studio? It looks like the Stellarlink has more features supporting your Stellar Automotive line so would you recommend this for a new debugger/programmer purchase over the SPC5-UDESKT?

Many thanks,

Owen

[Erwan YVIN]

Hello Owen ,

Yes , we support StellarLink and Openocd on SPC58 Family.

No need a licence

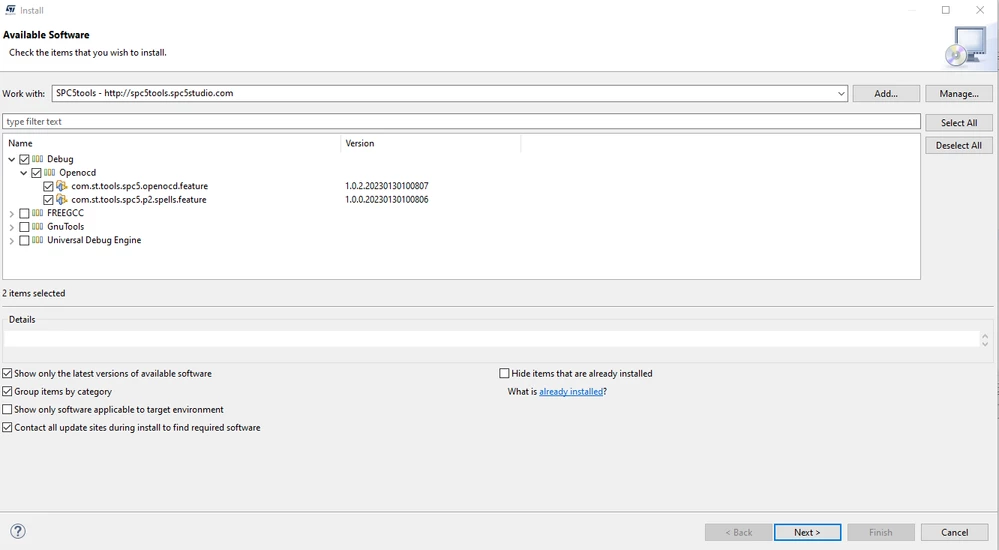

In SPC5Studio, Install openocd by update site feature for 58 Family

Help ==> Install New Software

http://spc5tools.spc5studio.com

Cf doc folder

C:\SPC5Studio-6.0\openocd\docs

How to use OpenOCD and StellarLink in SPC5Studio.pdf

Warning : we are using only mono core on SPC58 Family.

Best regards

Erwan

[OHarc.1]

Great, thank you Erwan.

[asn]

Is SPC56 series not compatible with StellarLink ?

[Erwan YVIN]

Sorry , it is not compliant only SPC58

we have the openocd code for porting with you want :

https://github.com/STMicroelectronics/OpenOCD/tree/openocd-automotive-mcu-r1

[asn]

So you mean to say that I have to write my own scripts (configuration files for openOCD) for SPC560P in order to make it work with SPC5Studio?

Correct me if I am wrong. Because I can invest sometime to write the config scripts.
