UDE STK DEBUGGER Serial monitor

[Angle]

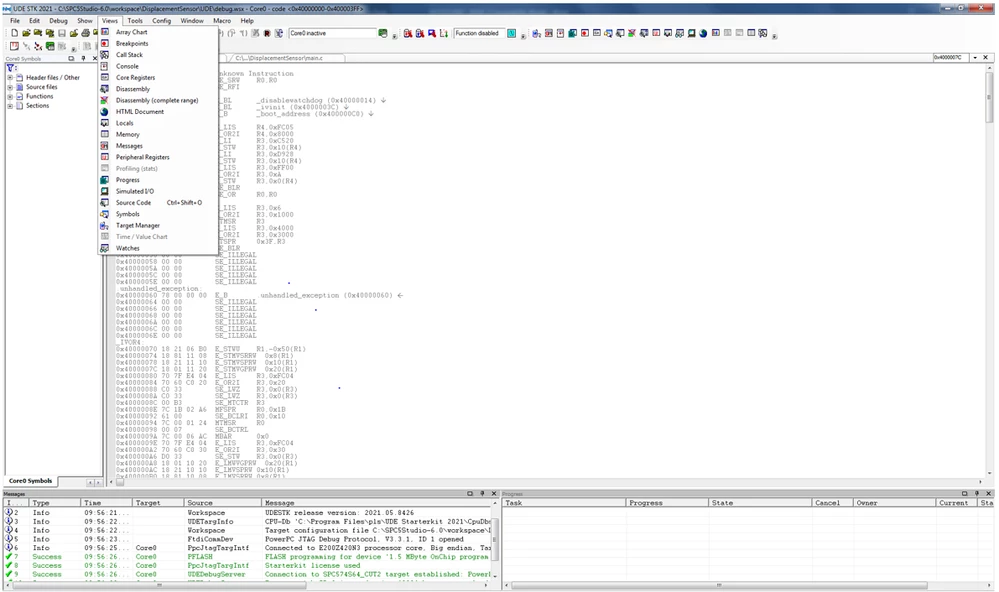

Hi, may i know how to open the serial monitor on UDE STK ?

i have been search whole day to monitor my adc value but i didn't found the serial monitor.



[ODOUV.1]

hello,

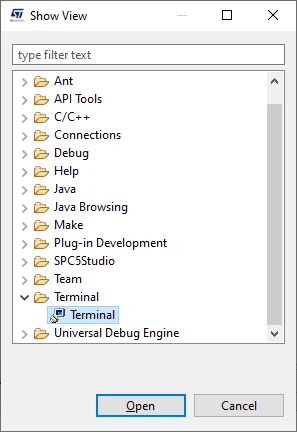

you can find a terminal in SPC5Studio in menue Winow->Show view->Other

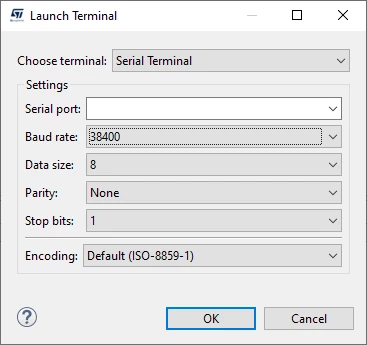

then select terminal:and select the bad rate at 38400 for our Demos:



Best regards

[Angle]

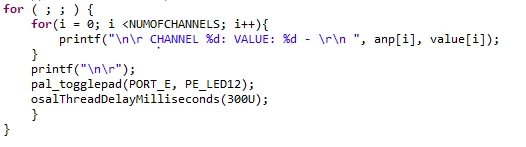

why it do not print anything ? i try the example on SPC57S and successfully compile and connected but it does not show anything, it do not print the channel and value. May i know why?

[ODOUV.1]

Hello,

to use printf command as debug in your main program,

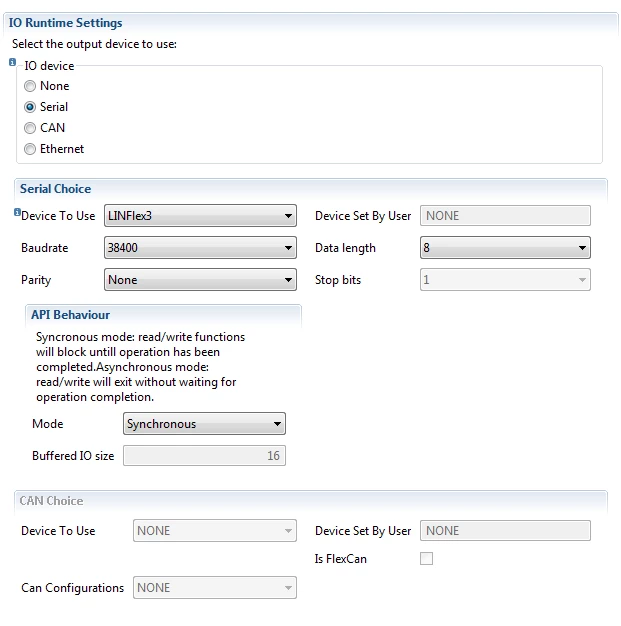

you need to add and configure this component to your project:

and configure the TX Serial pin PA[12] in Pinmap editor:

You can look at example Demo "SPC570Sxx_RLA SARADC Test Application for Discovery"

Best regards

[Angle]

Hi,

Is it correct the driver that i set? btw im using the the PD[14] as my serial pin.

[ODOUV.1]

So I suppose you are using SPC574S

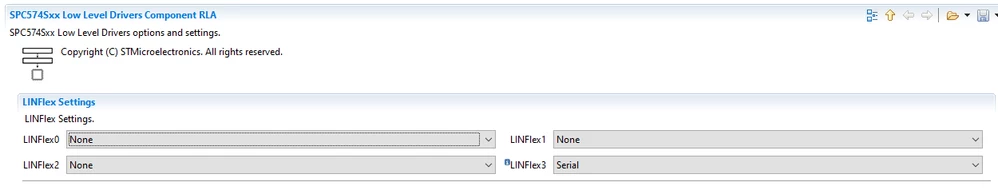

then you also have to enable serial driver and configure in Low Level Driver the LinFlex3 as serial:

Best regards

[ODOUV.1]

If your serial demo is working fine, it means your pinmap and driver configurations are good

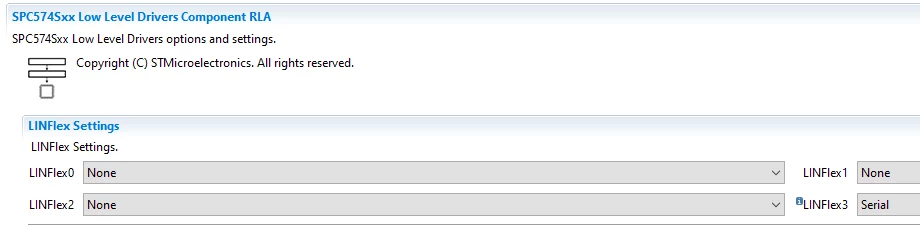

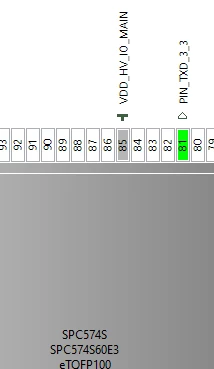

you should see this pinmap config:and this driver config:do the same configuration in your saradc demo, and it should work either.

Best regards
