Warning, Core2::CallFrame, could not read memory at 0x00000000

Posted on February 07, 2017 at 12:04

Hi I am using SPC5 studio as workbench, UDE STK as debugger.

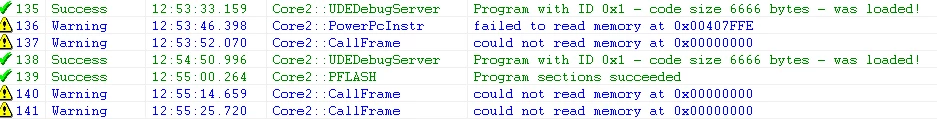

while debugging am getting the following warnings.

please help me to configure the UDE STK.

This topic has been closed for replies.

ST Employee

Posted on February 07, 2017 at 13:27

Hello Chandika ,

First, debug is OK on your target.

i think that you have launched the call frame window and PLS UDE is trying to link Address function to your elf file (Symbol file)

it could be a crash in your program.

check the LR and try to break the program before the crash

could you send me your full screenshot to have a state of the CPU ?

which version of PLS UDE do you use ?

Best regards

Erwan
