Which FlexCAN modules are available in 3-CAN SPC582B?

[Yannek]

Although SPC582B family has up to 7 FlexCAN modules, some units have only 3 (i.e. SPC582B60E1CD00X).

Which 3 of 7 CAN modules are available in this processor?

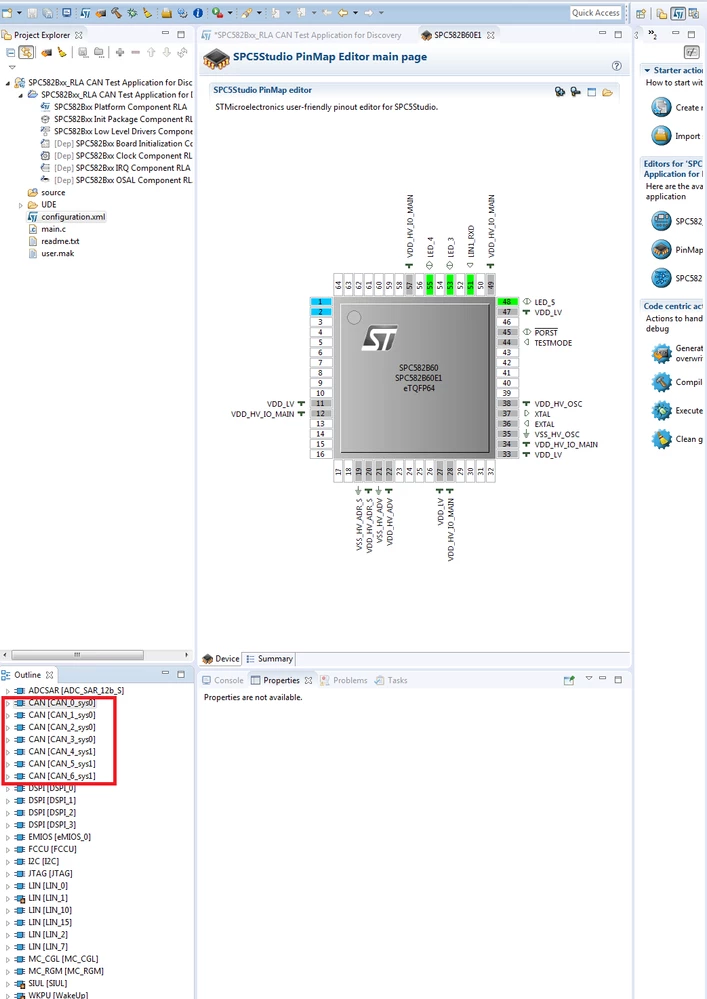

Since SPC5Studio shows 7 CANbuses for this processor, I don't know which I/O should I design for CANbuses.

[Erwan YVIN]

Yes , in SPC5Studio , we are seeing 7 Can Buses

You can use the Pinmap Wizard in order to determine which I/O Buses are designed for CAN Bus

It is very useful.

I am checking in the RM.

and check with experts

Best regards

Erwan

[Yannek]

Unfortunately, in this case, I cannot use SPC5Studio to see which I/O pins are designed for CANbus in SPC582B60E1CD00X.

SPC5Studio shows that this processor has 7 CANbuses, while actually it has only 3.

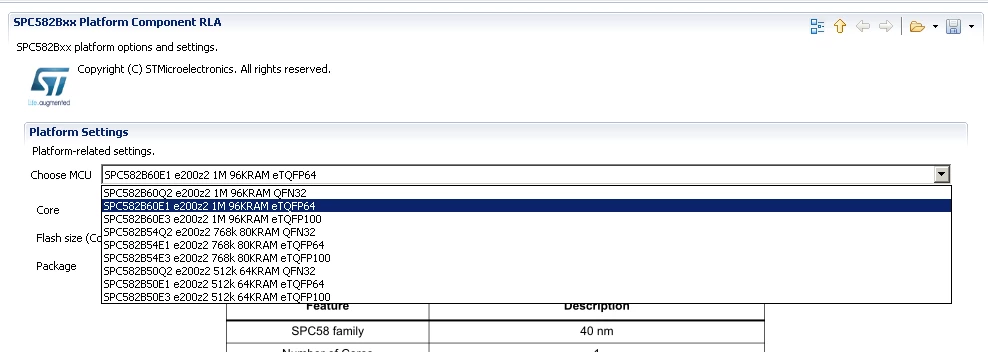

In SPC5Studio there is no choice between SPC582B60E1CD00X (3 CANbuses) and SPC582B60E1MH00Y (7 CANbuses):

Waiting for the answer from experts :)

Yannek

[JoniS]

I bet you get the information faster from datasheet of the given mcu.​

[Yannek]

I bet you don't, JoniS. Not only faster. Not at all.

[Yannek]

Hi Erwan,

Would you have any information in this topic, please?

Our project stucked, because we don't know which pins should be used...

Best,

Yannek

[Giuseppe DI-GIORE]

This information will be published in DS rev4
