application template auto generated code problem

  • May 31, 2019
  • 2 replies
  • 982 views

I've a problem with the generation of the code for the application template. Following the steps, i've generate a blank code, but there's a weird problem, maybe something about linker.

In fact looking in Middlewares/ST/AI/AI/src/network.c there are a lot of syntax errors, like if the variables defined in "network.h" wouldn't be considered, even with #include "network.h".

besides, calling a function that is defined in network.h, like ai_network_create for example, i get this error "Undefined reference to ai_network_create".

With validation template i haven't any problems, i can load the network and validate it both from pc that on the board.

here the blank project:

https://drive.google.com/open?id=1uMNyChclq7Rt7NMQVxcdyMxSpfZNgoHN

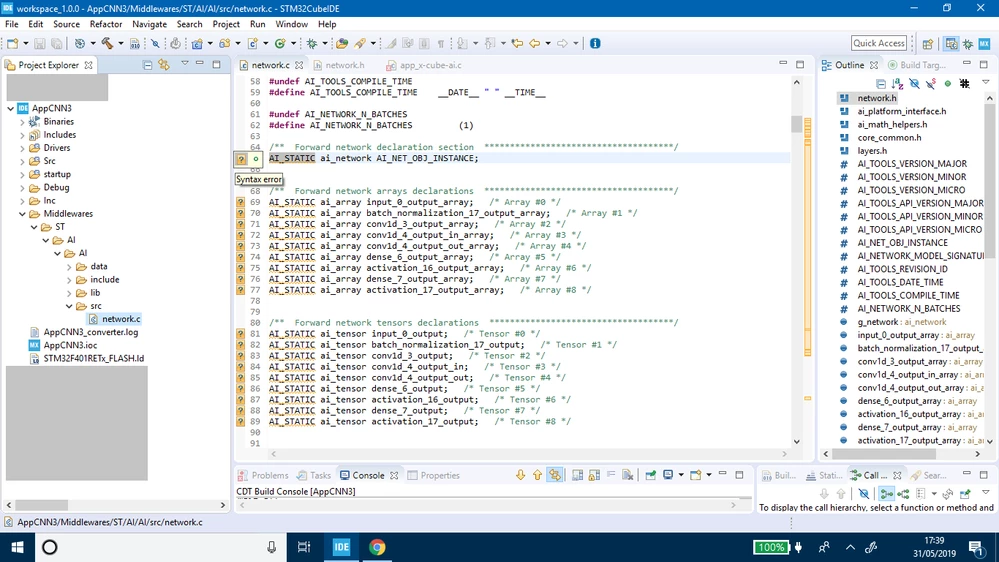

here some errors in network.c


    This topic has been closed for replies.
    Best answer by Gzini.6

    i've solved

    the problem was in the code generation spec

    i had to select True studio as IDE, uncheck Generate under root and select copy only the necessary library files.

    in this way i was able to load and run an application template on my board without linker problems.

    instead for validation template generate under root must remain selected.

    2 replies

    fauvarque.daniel
    ST Employee
    June 3, 2019

    In the project properties can you verify that the include paths have been generated properly.

    You should have something like

    ../Inc

    ../Middlewares/ST/AI/AI/include

    ../Middlewares/ST/AI/AI/data

    then the regular HAL and CMSIS includes

    Regards

    Gzini.6
    Gzini.6AuthorBest answer
    Associate II
    June 4, 2019

    i've solved

    the problem was in the code generation spec

    i had to select True studio as IDE, uncheck Generate under root and select copy only the necessary library files.

    in this way i was able to load and run an application template on my board without linker problems.

    instead for validation template generate under root must remain selected.
