Crash Debugging on STM32N6-DK: ATON_ENABLE(EPOCHCTRL)

[misaki]

I am using the STM32N6-DK board.
I am trying to execute an AI model on the STM32N6-DK board, following the instructions on the website below.
How to run AI models from model zoo on STM32N6 - STMicroelectronics Community

However, the software crashes when I try to execute it.



After examining the process, it seems to fail at the following sequence of function calls:



c

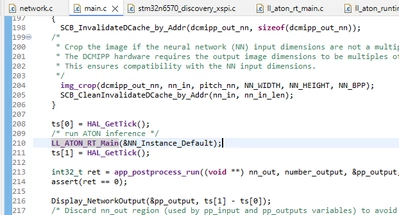

LL_ATON_RT_Main(&NN_Instance_Default);

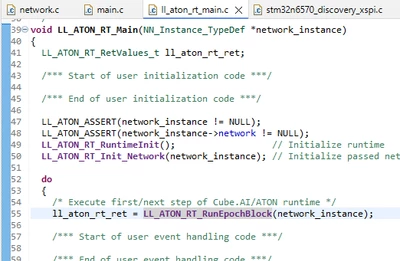

LL_ATON_RT_RunEpochBlock(network_instance);

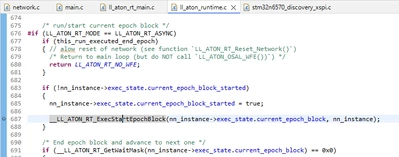

__LL_ATON_RT_ExecStartEpochBlock(nn_instance->exec_state.current_epoch_block, nn_instance);

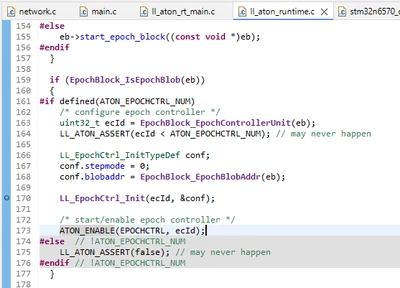

ATON_ENABLE(EPOCHCTRL, ecId);







The crash occurs after calling

ATON_ENABLE(EPOCHCTRL, ecId)

What could be the potential causes for this problem?

[Julian E.]

Hello @misaki,



You just downloaded the getting started, opened the cubeide project and flashed it?

Or are you trying to use another model? Could you please describe the steps you followed.



Have a good day,

Julian

[misaki]

Hello @Julian E.

I followed all the steps described on this website (How to run AI models from model zoo on STM32N6 - STMicroelectronics Community).

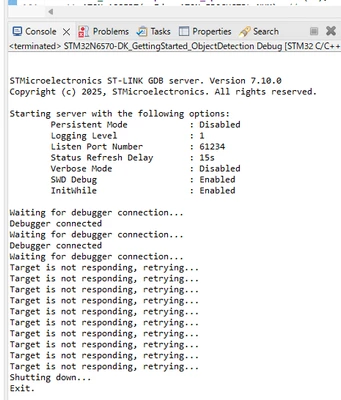

When I performed the final step and ran the process in CubeIDE, the execution crashed.

To investigate the cause, I ran a debug process in CubeIDE and found that it crashed at the specific location mentioned above.

Thank you for your support.
