CubeAI Studio: E200 ValidationError with Audio Event Detection from model zoo

[dineshsaravanan]

Hardware

• Board: NUCLEO‑U5A5ZJ‑Q
• MCU: STM32U5A5
• ST‑LINK

Software / Tools

• ST Edge AI (via STM32CubeAI Studio)
• Target: STM32U5
• Model source: STM32 AI Model Zoo
• Model used:
  miniresnetv2_s1_64x50_tl_int8.tflite
  (Audio Event Classification → ESC‑10)



  Steps Followed

  1. Imported the miniresnetv2_s1_64x50_tl_int8.tflite model into STM32CubeAI Studio
  2. Selected NUCLEO‑U5A5ZJ‑Q as the target board
  3. Kept default settings in all steps
  4. Run on Target
     Generated code, built, flashed, and attempted (Step 4 – Validate) failed

  ---

  Observed Issue

  During Run on Target, validation fails with the following error:

  Run failed: Error: validate error:
  E200 (ValidationError):
  TARGET: Unable to bind the ST.AI runtime with "network" c-model
  E801 (HwIOError): Invalid firmware - COM8:115200

  I have attached the complete validation failure log for reference.

  Additional Observation

  During Step 1 (Code Generation), I consistently receive the following warning from STM32CubeMX:

  Warning: Code Generation
  Main Config: These peripherals still have some not configured or wrong parameter values:
  [Clock]

  I proceeded with code generation despite the warning.

  Any guidance or suggestions to resolve this issue would be greatly appreciated.

  Thank you in advance for your support.

  Best regards,
  Dinesh







[Julian E.]

Hi @dineshsaravanan,



I confirm the issue. I am looking internally for information



Have a good day,

Julian

[Julian E.]

Hi @dineshsaravanan,



The issue is caused by MX, it seems that the clock config was wrong for some reason.

Here is a fix that should slove it.



Pease go to: C:\ST\STM32Cube AI Studio\STM32Cube-AI-Studio\resources\stedgeai-desktop-backend\dependencies\

and open to edit: boardExternalMem.xml



Then look for the die id 481, around line 3800 and replace the current config by this:

 <die id="481">
 <testOptimal>
 RCC.HCLKFreq_Value=160000000
 </testOptimal>
 <optimalParameters>
 RCC.SYSCLKSource=RCC_SYSCLKSOURCE_PLLCLK
 RCC.PLLM=1
 RCC.PLLN=80
 RCC.PLL1R=2
 RCC.PLL2FRACN=0
 RCC.PLL3FRACN=0
 RCC.PLLFRACN=0
 RCC.PLLSourceVirtual=
 RCC.HSE_VALUE=16000000
 RCC.MSIClockRange=RCC_MSIRANGE_4
 RCC.SYSCLKFreq_VALUE=160000000
 RCC.VCOInputFreq_Value=4000000
 RCC.VCOInput2Freq_Value=4000000
 RCC.VCOInput3Freq_Value=4000000
 RCC.USBPHYCLockSelection=RCC_USBPHYCLKSOURCE_HSE
 RCC.Mode=HSE-External-Oscillator
 </optimalParameters>
 </die>

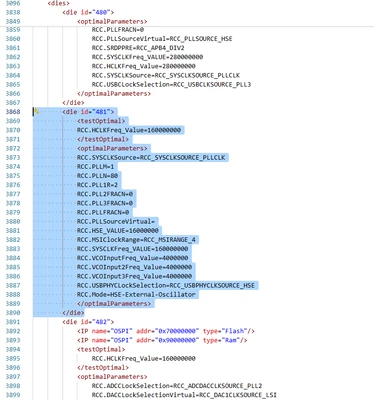

You should have something like this:



This will be fixed in the next release of CubeAI Studio but please edit it manually if you need it before that.



Let me know if this helped.



Have a good day,

Julian

[dineshsaravanan]

Thanks for the support.
After applying the suggested steps, I’m now able to see the Inference Report during AED model validation on target. The issue is resolved.

Appreciate the help!
