hsdatalog_to_wav.py conversion not working

[Gerva]

Hi,

I am currently using SensorTile.box Pro with FP-SNS-DATALOG2 FW.

After acquisition, I would need to convert the data from the microphone from .dat to .wav and to do this I am using the hsdatalog_to_wav.py example provided. Unfortunately, the resulting .wav seems to be empty. Duration is correct but no sound is present.

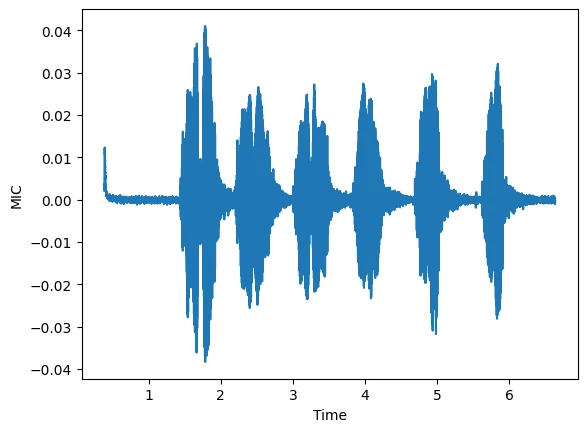

Attached a picture of the .dat file converted to .csv (phases with no sound and with sound are visible) and the .wav file.

Thank you for the support

[SimonePradolini]

Hello @Gerva

we are closing a planned maintenance release, so we can work on the possible issue in the next days release the a fix (if needed) in a couple of weeks.

Can you share with us the complete acquisition folder and the Python version you are using? Are you using FP-SNS-DATALOG2 latest version (v2.0.1)?



Best regards

Simone

[Gerva]

Hi Simone,



Thank you for your feedback. I confirm that we are using SNS-DATALOG2 v2.0.1. Python version is 3.9 and 3.10.



Here the folder link as I cannot share .dat o .zip file here.

https://we.tl/t-0bqIN8UuPI



BR

[SimonePradolini]

Hello @Gerva

I've just converted the audio file properly, so I can guarantee that the upcoming v2.1.0 will work as expected.

Have you already tested the script using "-s mp23db01hp_mic" as argument (python hsdatalog_to_wav.py Test_Mic -s mp23db01hp_mic)?



Best regards

Simone

---
