STM32F + NM500 neuromorphic chip - hardware neural chip

[michal_ca]

Hi guys,

I was wondering if there are people interested in artificial inteligence computed on embedded devices? Recently i have found a smart chip for accelerating neural networks produced by a Korean company called NM500 http://general-vision.com/documentation/TM_NM500_Hardware_Manual.pdf and i am trying to play with it. I have found that the NM500 uses 16bit parallel bus and the manufacturer is using fpga as a interface to this bus. I find this quite limiting, because there is no easy way how to implement this chip without their fpga to my PCB designs.

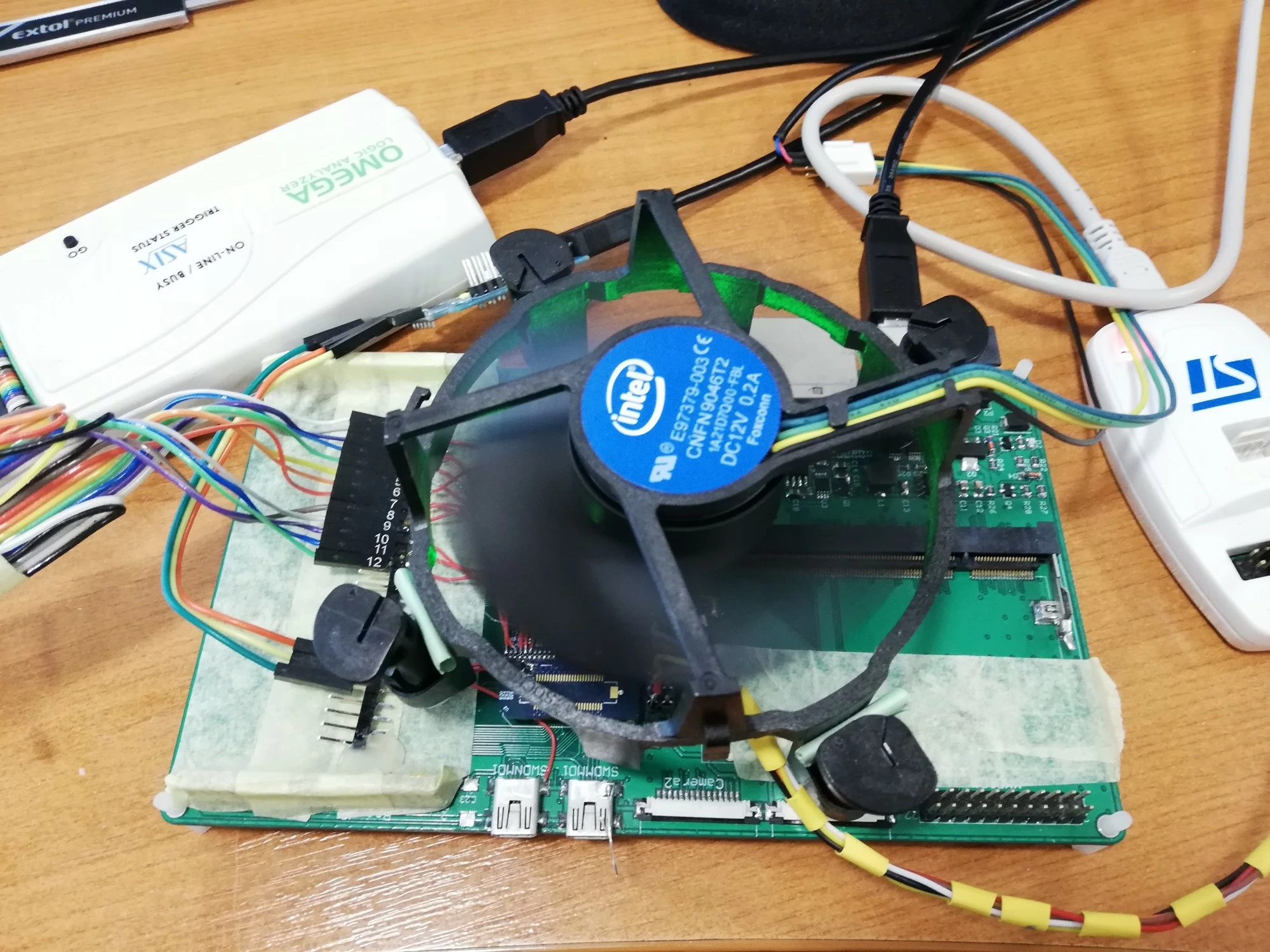

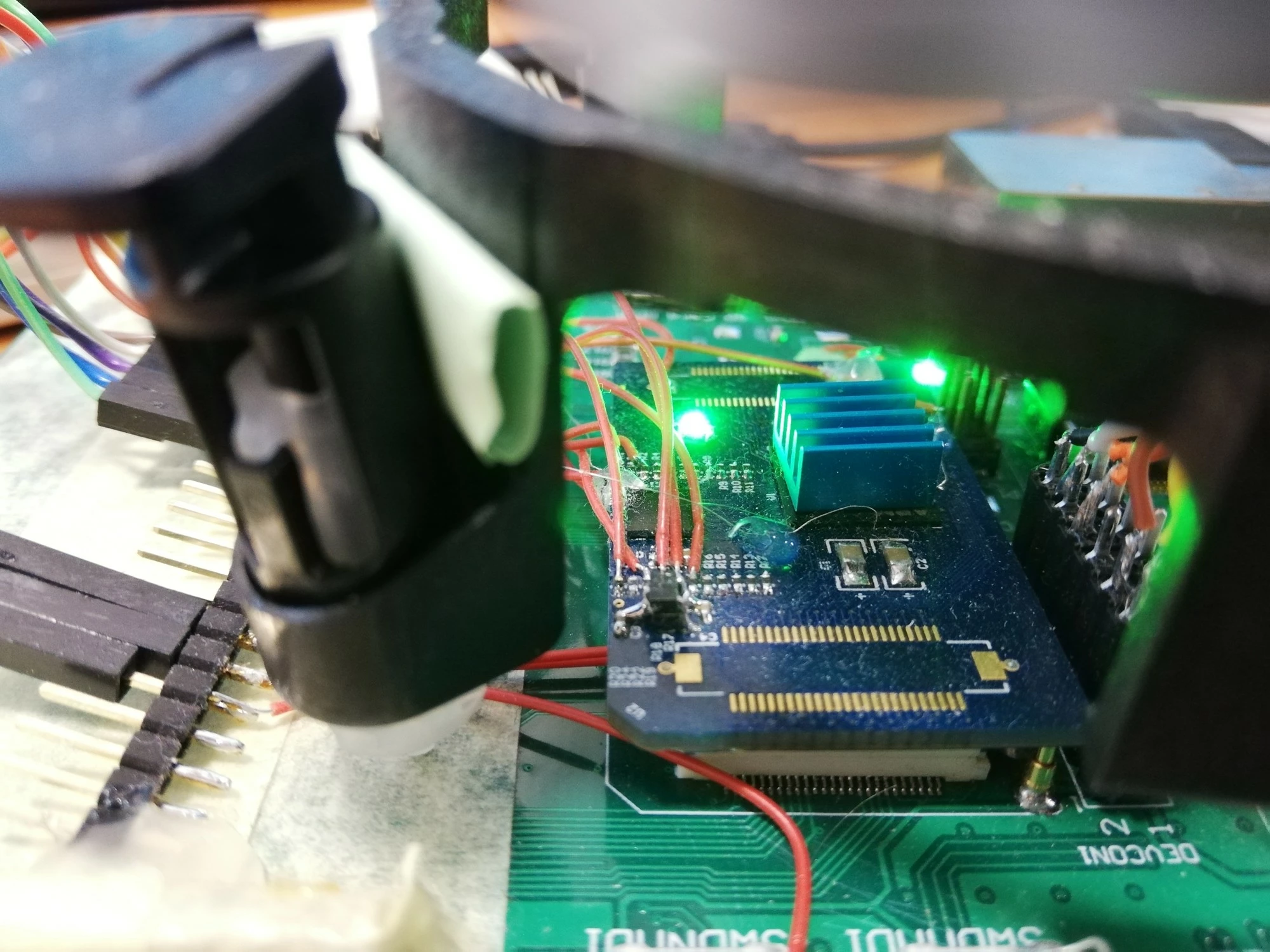

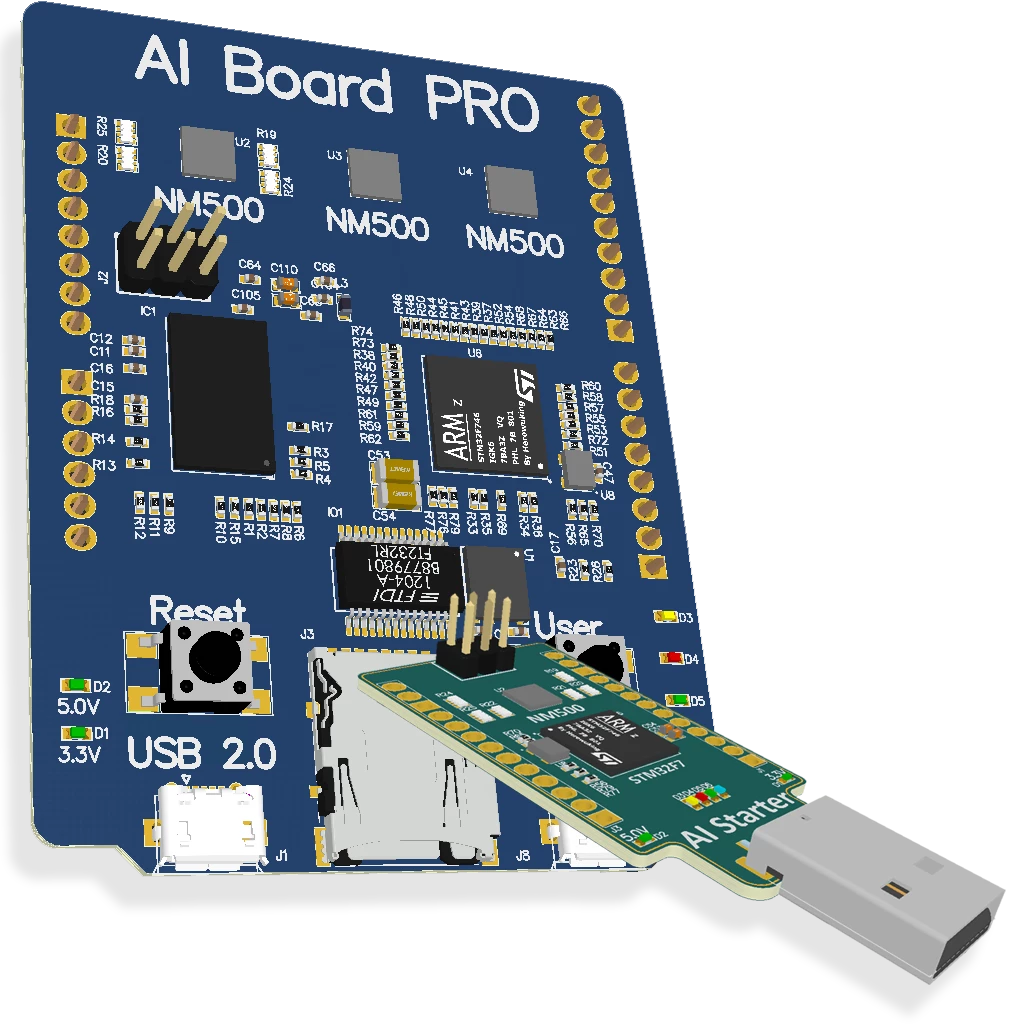

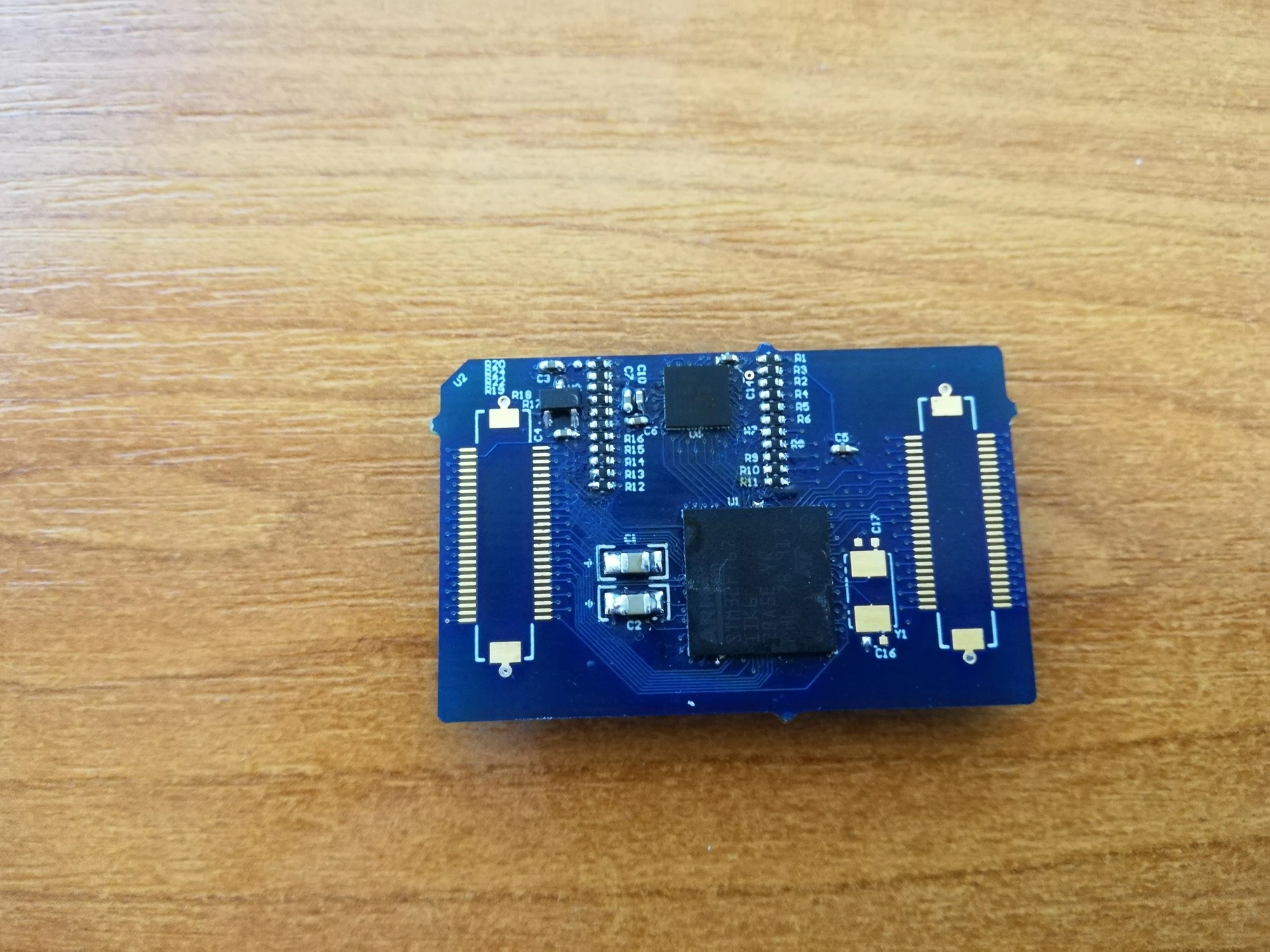

Thats why i have decided to programm a small C library form STM32 which uses DMA and standard GPIO to communicate with NM500 at full speed. Now i am creating a small developement kit (arduino footprint compatiblie), with STM32F7, three NM500, SD card, 128mb ram and camera interface

What do you think about NM500 ? I was wondering, since i havent found any posts about this chip in the forums if there are others interested in it? I am thinking of maybe going public with my kit and c library.

[ABaho.1]

Hi Michael,

does the board include an STM32, I found a product named 'NEUROTILE' but it seem impossible to get it

I'm working on the same project as yours, is it possible to share your hardware?

best regards

Azdine

[michal_ca]

Hi Azdine,

Yes it does. STM32 and NM500 - direct connection.

May I ask you what project are you working on ?

If you want developing kit I working on it. It will be available end of this week.

schematic for NeuroShield is here

https://github.com/nepes-ai/neuroshield/blob/master/UserManual_NeuroShield.pdf

[ABaho.1]

Hi Michael,

thanks for your quick answer, you mean that your product is similar to the 'Neurotile'

I working on a capacitive sensing product , the goal is to use a capacitive sensor module

like LDC2112 from TI.

I need to recognize objects with capacitive sensing in different configurations. So if you

can supply a main board lais around an STM32 and NM500 we can play with the LDC2112

if your module is available next week this will be fine.

best regards

Azdine

[ABaho.1]

hi Michael,

did you finish you kit and how to get 3 units

best regards

Azdine
