X-CUBE-AI Model validation Error

[Valerian G.]

Hello,

I have a recurrent error when I try to validate a model using X-CUBE-AI : "TOOL ERROR: Weights are incompatible with model: xxxxx loaded, 89864 found", where xxxxx depends on the model I try to validate. The error occurs in the CubeMX software as well as in command line, for all the models I tried to validate (Keras and ONNX).

The error also occurs when I follow the "Getting started" ST's video and try to validate the specified model (https://www.youtube.com/watch?v=grgNXdkmzzQ).

You can find attached the network analyze report and the faulty network validation report.

Any help would be welcome

[Valerian G.]

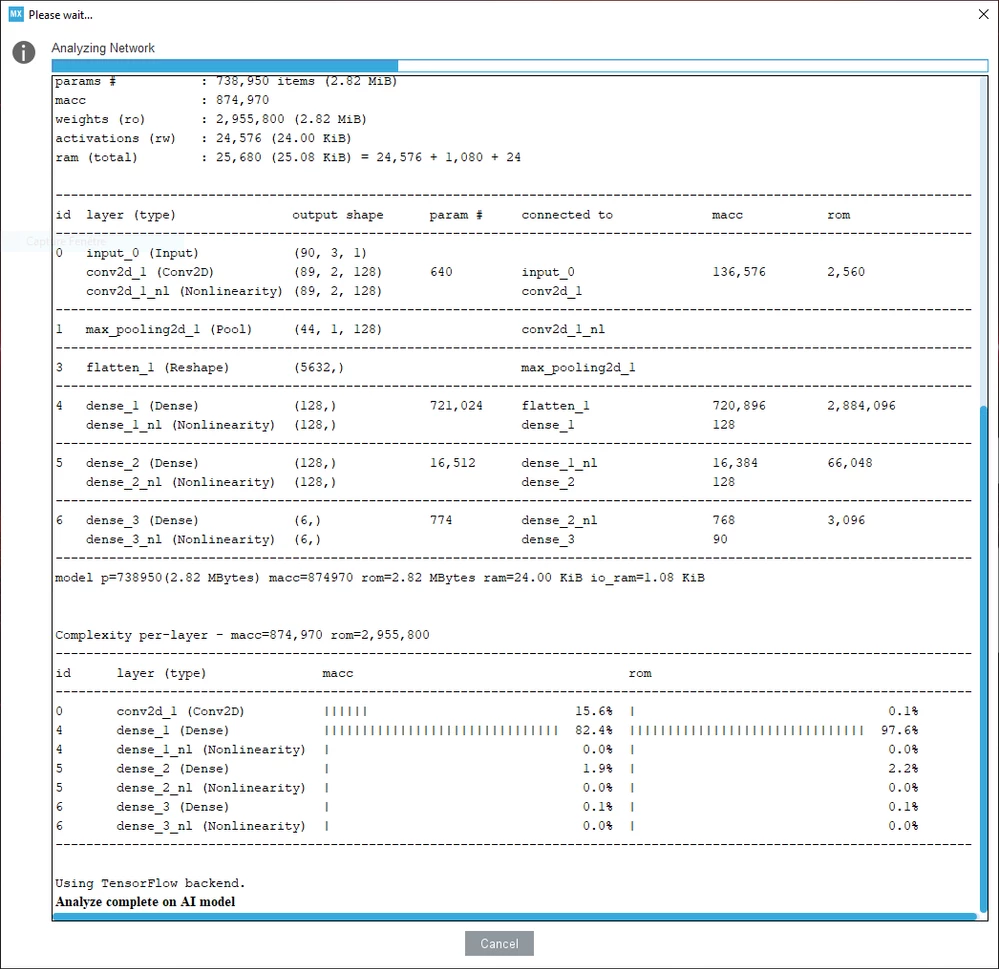

The "Analyze" step seems to be done successfully. Nonetheless, when I analyze the model using the GUI in CubeMX or in CubeIDE, the window freeze indefinitely even if the message "Analyze complete on AI model" is displayed (screenshot attached). Maybe this is linked, as I can't find a valid reason for the window to freeze.
