X-CUBE-AI: "ValueError: Path for entry objcopy_binary_path does not exist" when validating.

[cxf]

hi  , i want to use STM32Mx to validate  my model(.onnx) on target STM32N6570-DK board ,now STM32MX is 6.15.0 and Toolchain/IDE select STM32CUBEIDE,when i connect board to PC,and click the validate on target,it show me error like this:



 File "C:\Users\lenovo\STM32Cube\Repository\Packs\STMicroelectronics\X-CUBE-AI\10.1.0\scripts\N6_scripts\n6_utils_pkg\config_reader.py", line 100, in sanitize_config
    check_path_entry_ok(self.data, k)
  File "C:\Users\lenovo\STM32Cube\Repository\Packs\STMicroelectronics\X-CUBE-AI\10.1.0\scripts\N6_scripts\n6_utils_pkg\config_reader.py", line 74, in check_path_entry_ok
    raise ValueError(f"Path for entry {key} does not exist: {rv}")
ValueError: Path for entry objcopy_binary_path does not exist: C:/Users/foobar/TOOLS/gcc-arm-none-eabi/12.2 rel1/bin/arm-none-eabi-objcopy.exe
Build error



please help me to slove this problem ,thanks!

[Souhaib MAZHOUD]

Hello @cxf

Could you please add your .ioc file to check the issue?

KR,

Souhaib

[Andrew Neil]

Would a failure to find arm-none-eabi-objcopy.exe be related to the .ioc file?

Sounds more like an installation/configuration problem with the tools?

[Julian E.]

Hello @cxf,



As @Andrew Neil pointed out, this error seems to be because of a bad configuration of X Cube AI.

By default, the path to necessary tools are found automatically, but for some reason, it did not work for you.



Could you go to the X Cube AI repository folder:

C:\Users\lenovo\STM32Cube\Repository\Packs\STMicroelectronics\X-CUBE-AI\10.1.0\scripts\N6_scripts\



And manually set the paths in config.json.





Here is what mine looks like for reference:

{
 "gdb_server_path": "C:/ST/STM32CubeIDE_1.18.1/STM32CubeIDE/plugins/com.st.stm32cube.ide.mcu.externaltools.stlink-gdb-server.win32_2.2.100.202501151542/tools/bin",
 "gcc_binary_path": "C:/ST/STM32CubeIDE_1.18.1/STM32CubeIDE/plugins/com.st.stm32cube.ide.mcu.externaltools.gnu-tools-for-stm32.13.3.rel1.win32_1.0.0.202411081344/tools/bin",
 "objcopy_binary_path": "C:/ST/STM32CubeIDE_1.18.1/STM32CubeIDE/plugins/com.st.stm32cube.ide.mcu.externaltools.gnu-tools-for-stm32.13.3.rel1.win32_1.0.0.202411081344/tools/bin/arm-none-eabi-objcopy.exe",
 "cubeide_path": "C:/ST/STM32CubeIDE_1.17.0/STM32CubeIDE",
 "compiler_type": "gcc",
 "cubeProgrammerCLI_binary_path": "C:/Program Files/STMicroelectronics/STM32Cube/STM32CubeProgrammer/bin/STM32_Programmer_CLI.exe",
 "iar_binary_path": "C:/Users/foobar/TOOLS/IAR/IAR9.30.1/common/bin/"
}

(iar is not set as I don't use it)



Have a good day,

Julian



[Andrew Neil]

It's telling you that it can't find arm-none-eabi-objcopy.exe:



ValueError: Path for entry objcopy_binary_path does not exist:
C:/Users/foobar/TOOLS/gcc-arm-none-eabi/12.2 rel1/bin/arm-none-eabi-objcopy.exe
Build error



So does that path actually exist on your PC?

Do you have access rights to it?





[SlothGrill]

Hello
Just as an extra tip, if you have cubeIDE installed somewhere, you can reduce your configuration file to something like:

{
 "compiler_type": "gcc",
 "cubeide_path": "C:/ST/STM32CubeIDE_1.17.0/STM32CubeIDE"
}

Cheers.

[cxf]

Thank you all for your help and time investment，I really appreciate it!!!

problem 1: objcopy path error

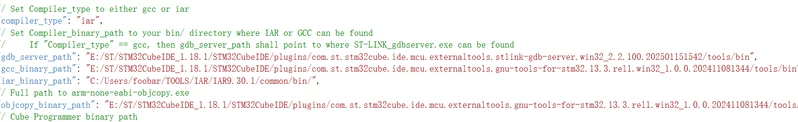

solution: by Julian E's way,i change my  config.json as

and it never output this problem

problem 2:

E200(ValidationError): TARGET: Unable to bind the ST.AI runtime with "network" c-model: []
 E801(HwIOError): Invalid firmware - COM35:115200

solution:it is the PLL and NPU CLK  reason, and i have set clk like this:

CPU=800MHZ,AXI =400MHZ,NPU=1GHZ,AXISRAM=900MHZ,HCLK=200MHZ



I hope these can help others，thanks！！



Now i can validate on taget ,but still have a small problem.

I want to use STM32cubeMX to generate STM32cubeIDE project(.project),and hope that:there is a bsp function

(like BSP_XSPI_NOR_Init) in this project,but no matter how i try , i can not find this function in it .who knows to solve this problem?(Now I have to manually handle this issue  by copy this function from other .c,and this method is very inconvenient )



EDIT: you can find a new thread regarding this question here:

there is no bsp function in STM32cubeIDE project f... - STMicroelectronics Community



thanks!!!

[Andrew Neil]

---

@cxf wrote:

Now i can validate on taget ,but still have a small problem.

---

That's a new question - please start a new thread for that.

Give a link here so that people can find it.
