My TESEO-LIV3F has stopped connecting to the Teseo-Suite! How can I restore factory settings?

[Iyaku]

..

[Francesco Virlinzi]

Hi

Did you change anything in the firmware configuration?

Which tool are you using? EVB-LIV3F or X-Nucleo-GNSS?

Thanks

Regards

Francesco

[Iyaku]

Yes, I tried to configure the firmware. But the process freezes and Teseo no longer communicates with the PC.

No I do not use VB-LIV3F or X-Nucleo-GNSS.

I have a Teseo module soldered to the board.

[Francesco Virlinzi]

From your MCU-host you should perform a firmware-update where the configuration is removed.

You can take the firmware @ https://www.st.com/content/st_com/en/products/embedded-software/automotive-infotainment-and-telematics-software/teseo-liv3fsw.html

Take care that to perform firmware-update your MCU has to driver the Teseo-LIV3F.nReset pin.

Just a question: what were you configuring? may be it's just a baud-rate issue?

Did you see PPS blinking? May you can communicate with I2C port.

Regards

Francesco

[Iyaku]

But can I complete firmware-update where the configuration is removed from the PC and terminal program or using any other program?

[Francesco Virlinzi]

Hi

Firmware update is always possible because internally it doesnt' care on the configuration.

On the PC:

• you have to use the firmware update tool (in the Teseo-Suite);
• in the firmware update tool you have to enable:
  • Recovery mode
  • Erase NVM
  • Baud 115200

On the board:

• connect the UART
• Push "Start" button in the firmware-update tool
• Trigger the module reset (this is mandatory)

On Module reset the firmware update will start.

Hope this helps

Regards

Francesco

[Iyaku]

Hi

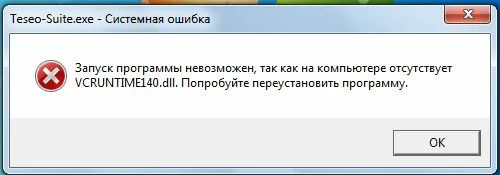

So that's the point, Teseo-Suite throws an error when you press the STA808x / 9x FW Upgrade button in the Tools menu?

[Iyaku]

speed did not change exactly

Worked only on UART, PPS is not possible to control.
