Teseo-LIV3F, No GPS coordinate

  • July 13, 2020
  • 4 replies
  • 4134 views

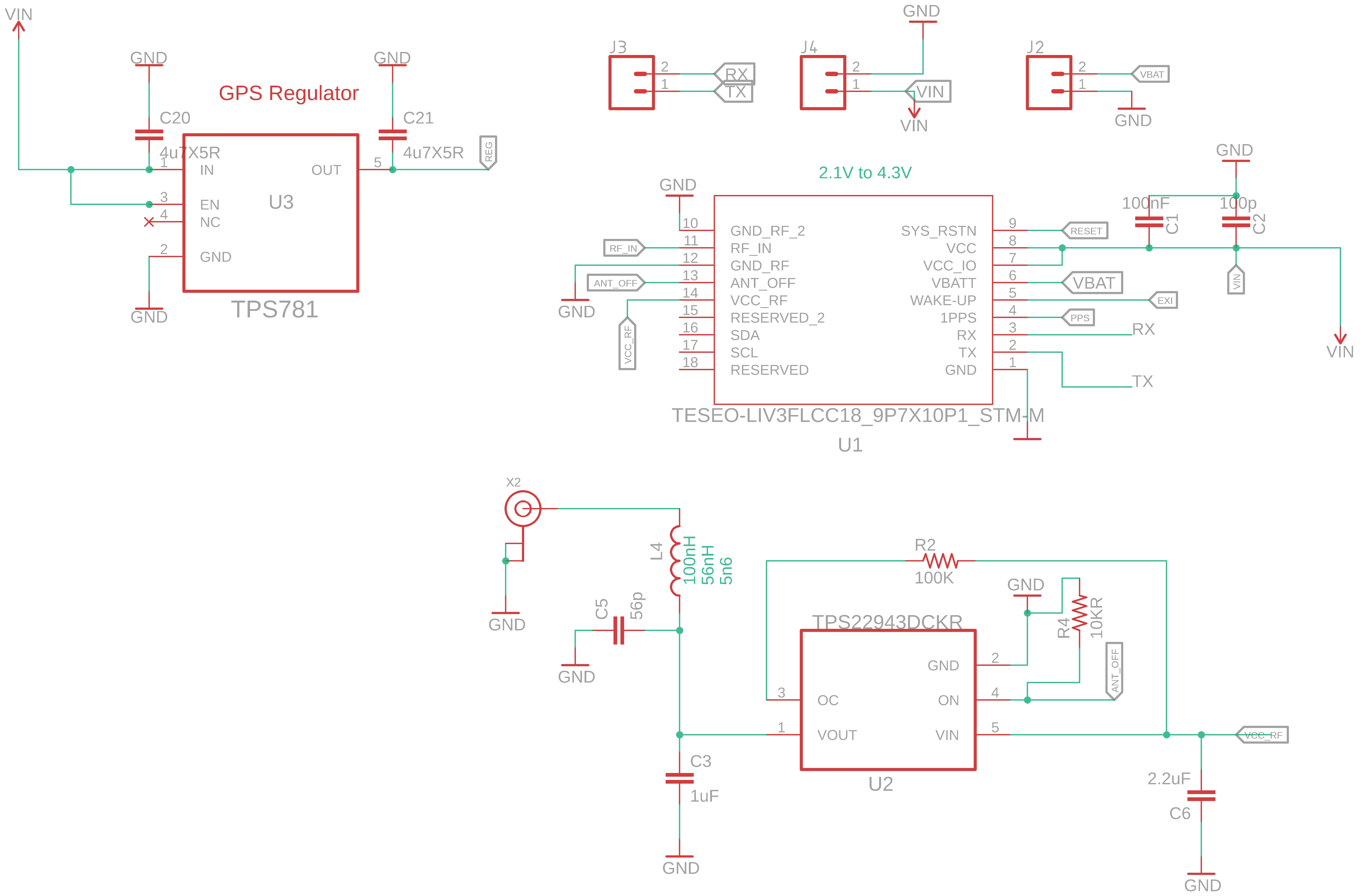

I made a PCB using Teseo-LIV3F as stand alone, tried to connect TX and RX of the module to Arduino TX and RX using I TinyGps++ library, but I couldn't get any response from the module. I tried to connect the module to software and hardware serial of the Arduino and couldn't also get any response. When I connect the module to USB to TTL I could get response. I am using an active antenna. I have attached the schematic which I am using. Hope to get some help to solve my problem.

Best regards

    This topic has been closed for replies.
    Best answer by Francesco Virlinzi

    Hi

    Your schematic make sense

    You are using tps22093 to provide power to the antenna... voltage comes from VCCRF (correct) and ANT_OFF to enable/disable the switch. This parts can not impact LIV working.... at least (in Over current) it could turnoff the antenna no more than that.

    I don't understand where VCC power comes from. I see VIN is the same for LIV and TPS781... but who is providing VIN?

    4 replies

    Technical Moderator
    July 13, 2020

    Hi

    Do you see the PPS pulsing?

    Is LIV3F out-of-Reset (Reset pins has to be high to guarantee LIV running)

    Regards

    Francesco

    AAl S.1
    AAl S.1Author
    Associate III
    July 13, 2020

    Hi, I have no pin out for PPS and Reset pins to the Arduino. I don't understand why when i connect the TX,RX OF Teseo to USB to TTL I could see that the module responses. The pins PPS and Reset in my schematic that i share with you are have no pinout to th MCU.

    AAl S.1
    AAl S.1Author
    Associate III
    July 13, 2020

    I just can see NEMA information when I connect USB to TTL

    Tesla DeLorean
    Guru
    July 13, 2020

    Perhaps you have the RX/TX sense backward on the Arduino, or the baud rate is wrong.

    Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
    Technical Moderator
    July 13, 2020

    Which values do you have on:

    • VCC/VCC_IO?
    • VBAT?

    AAl S.1
    AAl S.1Author
    Associate III
    July 13, 2020

    3.3v

    AAl S.1
    AAl S.1Author
    Associate III
    July 13, 2020

    Is the schematic correct? Is there any need to connect PPS and rest to the MCU?​
