TESEO-LIV3F with external passive antenna

[ZSade.1]

Hi all
I edited a PCB with TESEO-LIV3F with LNA and RF-AMP on the PCB board.

Now I need external passive antenna with Male SMA connector.

any recommendations? any one with good experience with this Module that can recommend P.N. for antenna?

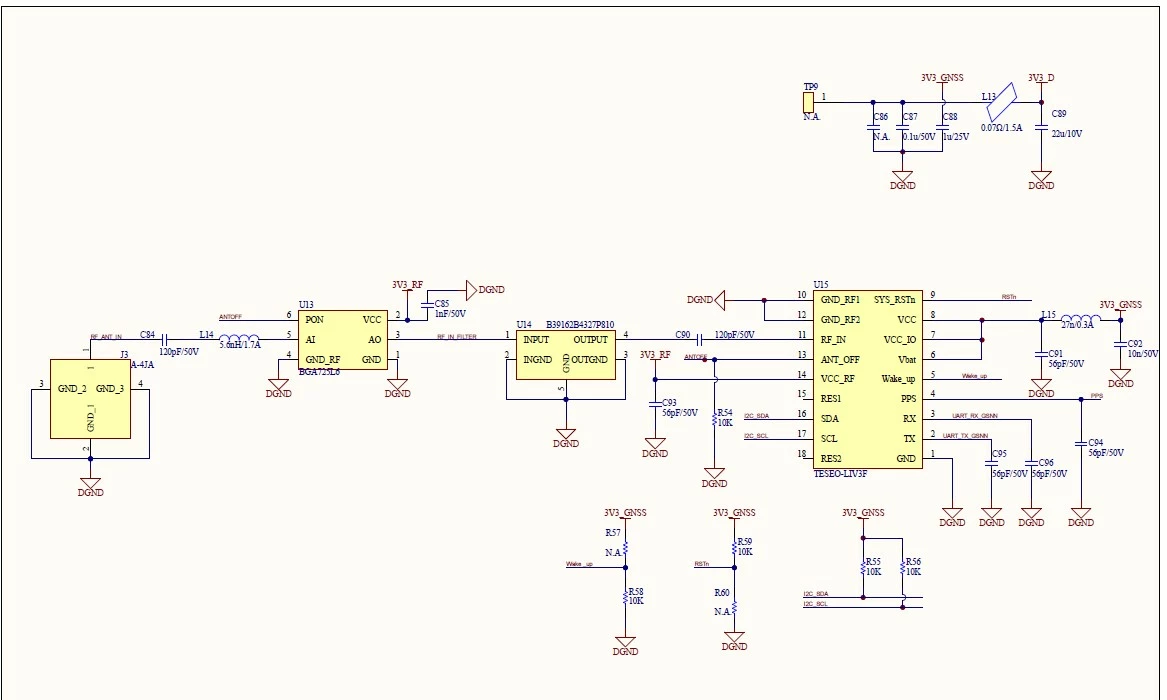

I attached my design.

[GalaxyQuest]

Hi,

In our hardware reference manual for LIV3F we provide a list of antennas.

LIV3F Hardware manual

Can you please cross reference this list of antennas with part # with SMA connector and pick ones have the same characteristics.





[ZSade.1]

HI



All the ANTENNAs in the list are active ANTENNAs.



I searched for PASSIVE one.



Therefore, the list in the file is irrelevant.

I bought a PASSVIE ANTENNA, once i will have results, i will post my conclusions on ST’s web site.
