Teseo-LIV4F

[Aravind]

Hi team,

    I already have this module-Teseo-LIV3F( https://estore.st.com/en/evb-liv3f-cpn.html ) But i need communicat the L5 band NAVIC signal. In this module not supported the L5 NAVIC signal.

In this module-Teseo-LIV3F( https://estore.st.com/en/evb-liv3f-cpn.html )  replace the L5 NAVIC supported ic a Teseo-LIV4F(https://estore.st.com/en/teseo-liv4ftr-cpn.html)

This is supported or Not???

Thanks and Regards

Aravind.SR

[Francesco Virlinzi]

Hi

• Teseo-LIV3F does NOT support Navic
• Teseo-LIV4F supports Navic using the dedicated firmware available @ https://www.st.com/en/embedded-software/teseo-liv4fsw.html

Hope this clarify

Regards

 Francesco



[Aravind]

Hi Francesco

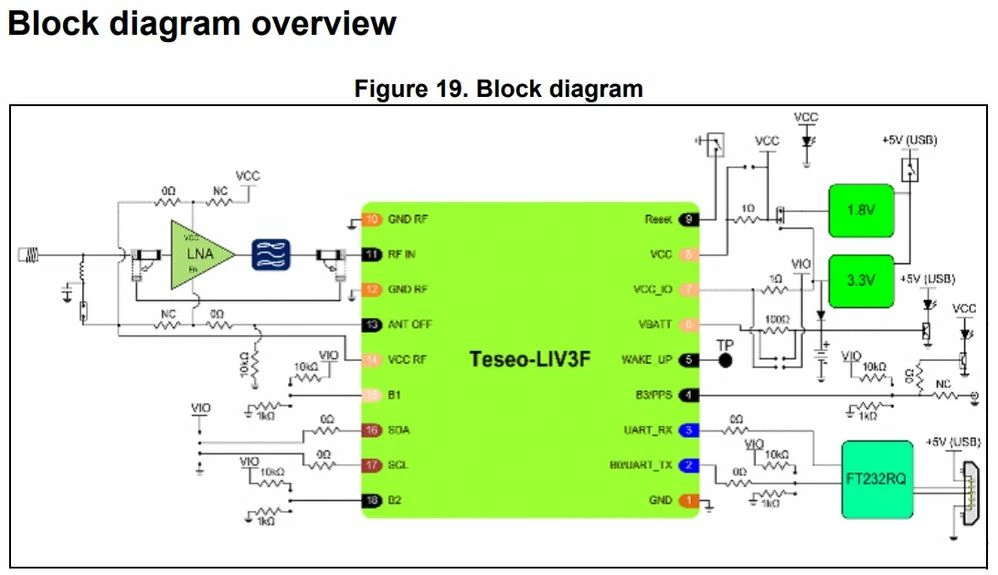

              Pls give me the block diagram of (Teseo-LIV3F GNSS module Evaluation Board)

Thanks and Regards

Aravind.SR

[Tesla DeLorean]

https://www.st.com/resource/en/user_manual/um2335-evbliv3f--evbliv3r-evaluation-board-stmicroelectronics.pdf

[Tesla DeLorean]

Not sure what the question is. There's an EVB for the Teseo 4

You should contact sales directly via a local representative if appropriate. You could try filing as an Online Support Request via the support portal.

Interest outside India for NAVIC is relatively low, perhaps you have local technology or support that can provide a more timely solution?

[Tesla DeLorean]

https://www.st.com/en/evaluation-tools/evb-liv4f.html

[Aravind]

Hi Team

        In this evaluation board able to process the NAVIC L5 Signal? (https://www.st.com/content/ccc/resource/technical/document/data_brief/group3/1c/3f/dd/63/dd/60/45/0f/DM00760328/files/DM00760328.pdf/jcr:content/translations/en.DM00760328.pdf)

Regards

Aravind

[Francesco Virlinzi]

Hi

Yes. Navic can be acquired on EVB-LIV4F.

Again take care you have to install the correct firmware (available on Teseo-LIV4FSW) to support Navic.

Regards

 Francesco
