Is there a hazard to use the VL53L5CX without the physical infrared filter?

  • June 13, 2022
  • 1 reply
  • 1288 views

Hello,

The physical infrared filter give some faulty measurements and wont stick perfektly on the VL53L5CX.

kind regards

Maik H.

This topic has been closed for replies.
Best answer by Anne BIGOT

This liner is put to protect the sensor from soldering.

To use the sensor, you have to remove the liner. If you use the sensor with it, it explains your  faulty measurements.

1 reply

Anne BIGOT
Anne BIGOT
Technical Moderator
June 17, 2022

Hello,

What do you mean by physical infrared filter ? Is it the liner on top on the sensor ?

Indeed, the physical infrared filter is inside the sensor.

Regards

Our community relies on fruitful exchanges and good quality content. You can thank and reward helpful and positive contributions by marking them as 'Accept as Solution'. When marking a solution, make sure it answers your original question or issue that you raised. ST Employees that act as moderators have the right to accept the solution, judging by their expertise. This helps other community members identify useful discussions and refrain from raising the same question. If you notice any false behavior or abuse of the action, do not hesitate to 'Report Inappropriate Content'
MaikH
MaikHAuthor
Associate II
June 17, 2022

Hello,

Thank you for your reply.

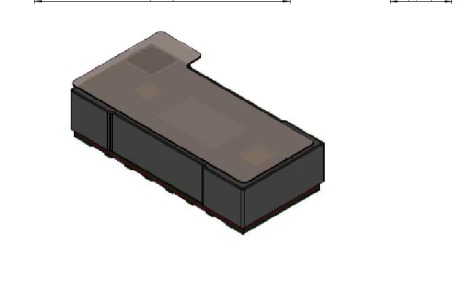

I mean the little foile on top of the VL53L5CX like in the picture below.

kind regards

Maik H0693W00000Ns4rTQAR.png

Anne BIGOT
Anne BIGOTBest answer
Technical Moderator
June 17, 2022

This liner is put to protect the sensor from soldering.

To use the sensor, you have to remove the liner. If you use the sensor with it, it explains your  faulty measurements.
