Prefered colour surface background for outdoors (VL6180X)

[Jhern.1]

Hello,

I am experimenting some trouble when using sensor VL6180X outdoors due to sunlight.

The lasers are continuously seeing a yellow surface at 15cm. I get good rangings under Indoor light condition.

The point is the lasers do not see any backgound when sunlight is hitting the surface.

My questions are:

¿Is there any colour that can be used in the surface so as to improve performance under sun light conditions?

¿Is there any setting I can tweak into sensors so as to improve this?

Regards, Ramon.

[Julien NGUYEN]

Hi Ramon

The Time of flight technology is not independent on the color but it depends on the material reflectivity.

You may try the 3M™ Scotchlite™ Reflective Tape to improve the signal to noise ratio in outdoor.

Thanks,

Julien

[Jhern.1]

Hi Julien,

Thanks for your answer.

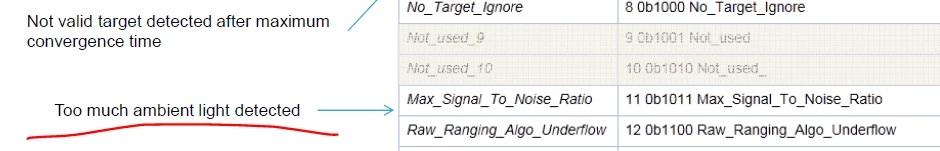

In outdoors condition I am getting the following error while ranging (Max Signal To Noise Ratio), which is due to high ambient light (as stated in API description).



My question is: Is there any setting I can tweak so as to avoid this error and get a range value under these conditions.

Regards, Ramon.

[Jhern.1]

Please, I would an answer about this topic.

[Jhern.1]

Question: Offset or CorssTalk calibration can help on this?
