RSVD6 of VL53L5CXV0GC

  • November 14, 2023
  • 1 reply
  • 1242 views

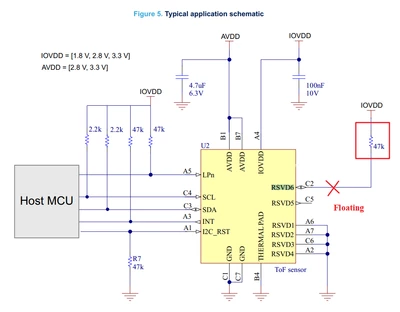

In VL53L5CXV0GC Typical application schematic, The pin RSVD6 must connect a 47 kΩ pullup resistor to IOVDD. If I keep this pin as floating, what will happen? Will power consumption increase? Or is the detection inaccurate?

Thany you.




This topic has been closed for replies.
Best answer by Anne BIGOT

Hello,
C2 is a Unused GPIO. It's an output so just pull it up gently and ignore it.

You aren't going to use an significant amount of power.

If you are keeping it floating this could damage the sensor or you could get some false measurements.

Best regards
Anne

1 reply

Anne BIGOT
Anne BIGOTBest answer
Technical Moderator
November 22, 2023

Hello,
C2 is a Unused GPIO. It's an output so just pull it up gently and ignore it.

You aren't going to use an significant amount of power.

If you are keeping it floating this could damage the sensor or you could get some false measurements.

Best regards
Anne
