vl53l0x in continue and Time mode

[zhy]

Hi,

       vl53l0x in continue mode ,how to read data_status and in time mode how to set time and read data and data_status?

              thanks

[zhy]

Which function and where to call it, or do you need to check the data correctness for both patterns?

[Zhiyuan.Han]

Hi

For 53L0X, it can either works in continuous mode or Continuous Timed Ranging mode, you can set the ranging mode by VL53L0X_SetDeviceMode()

and bout timing seting,

• timing budget, you can set by VL53L0X_SetMeasurementTimingBudgetMicroSeconds()
• if your prefer timed mode, you also need to set inter measurement time by VL53L0X_SetInterMeasurementPeriodMilliSeconds()

once measuring is done and data is ready, you can read out the data by VL53L0X_GetRangingMeasurementData().

for more detail, please visit below two link in www.st.com for more information.

VL53L0X API User_Manual.fm

STSW-IMG005 | Product - STMicroelectronics



Br

Zhiyuan.Han

[zhy]

Hi，

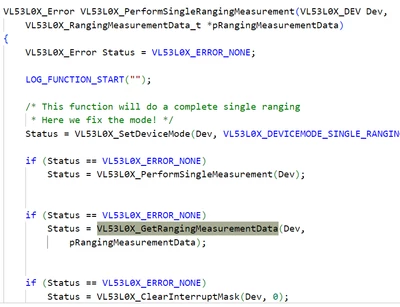

  I only see a single measurement with VL53L0X_GetRangingMeasurementData(),and continue mode not find



[Zhiyuan.Han]

Hi

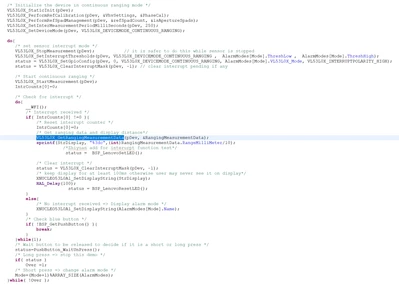

About continuous mode, it is same as single short, it needs to use   VL53L0X_GetRangingMeasurementData(pDev, &RangingMeasurementData) to read out all the data.

About overall ranging flow, please refer page 12 of the SW UM VL53L0X API User_Manual.fm



Br

Zhiyuan.Han
