VL53L4CDV0DH/1 IR cover

[EduardD]

Hello,

I am designing a product based on VL53L4CDV0DH/1 ToF sensor,

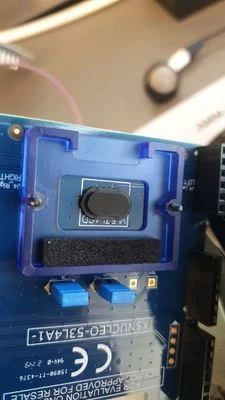

when purchased an evaluation board NUCLEO-53L4A1 It contains a small cover IR window

I want to use it in mass production,

There is off the shelf such IR cover ?

P/N ?

Thanks,

Eduard





[EduardD]

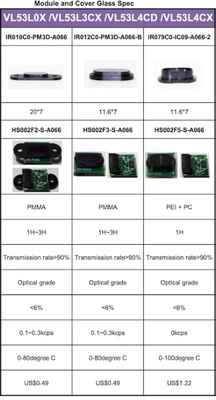

These are the parts from www.hornix.com.tw - the first 2 have flat pieces of glass that fit tightly over the sensor. Click on product to see the full list - near the bottom of the page.

The one on the right has an opaque barrier that completely prevents crosstalk - but it's more expensive to mold.

(Hornix and ST cooperate but have no financial arrangement.)

They are in Tiawan - so give them a bit to respond.

- john

[EduardD]

Thank you,

Will contact them
