VL53V1CB calibration

[Fantalucio]

HI,

I am using ULD API function VL53L1X_CalibrateOffset() and VL53L1X_CalibrateXtalk() to calibrate the sensor and then I store the parameters in EEprom and everything works fine: with VL53L1X_GetResult() I can see the distance of the object and when it moves away, the status returns "2 ", then I can ignore the measured distance and assume that there is no object.

The problem is that when I restart the board and send the previously saved calibration parameters with VL53L1X_SetXtalk() and VL53L1X_SetOffset(), the status always returns NO ERROR and an incorrect distance.

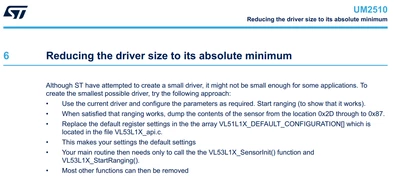

I also tried the following procedure from VL53L1X ultra lite driver with the same results.

Any suggestions?

Thanks.
Lucio



[Zhiyuan.Han]

Hi Lucio

From 1st half, seems your code is able to range correctly, so I suspect the issue come from wrong calibrate data was set after reboot.

Can you try to read back the offset and xtalk values to do a comparation with VL53L1X_GetOffset() and VL53L1X_GetXtalk()?

• one is just after calibration, read out the calibrated value.
• the other one after reboot and applied your saved value.



Br

Zhiyuan.Han
