Ble Receiving Junk data

[MCV.1]

hi all

i am using blenrg2 m2sp chip as network mode. its operating as peripheral device and communicating with host controller through UART with 115200 baud rate .

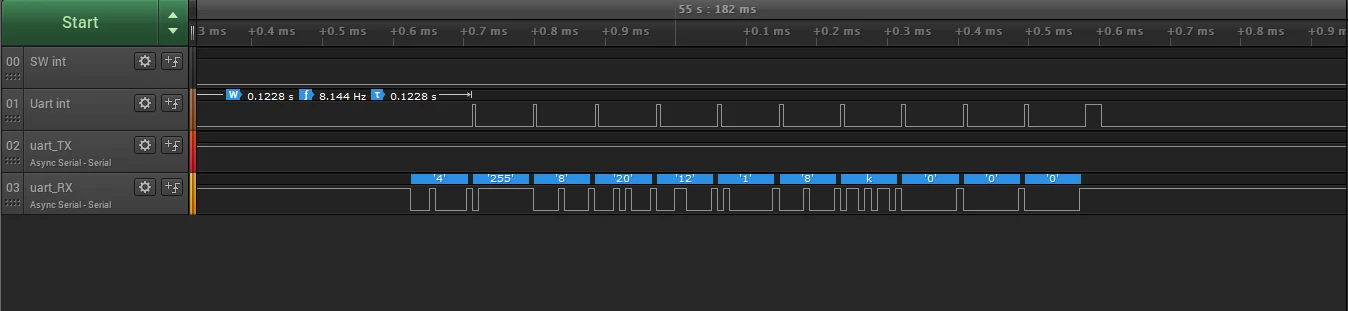

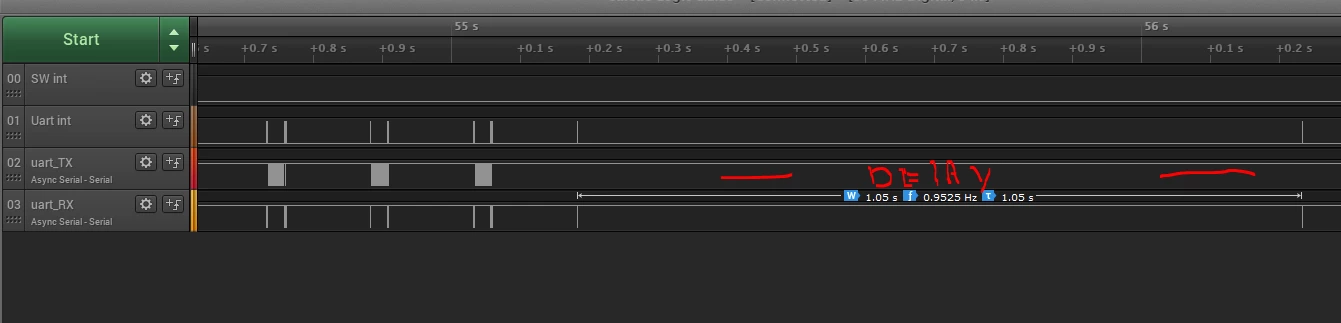

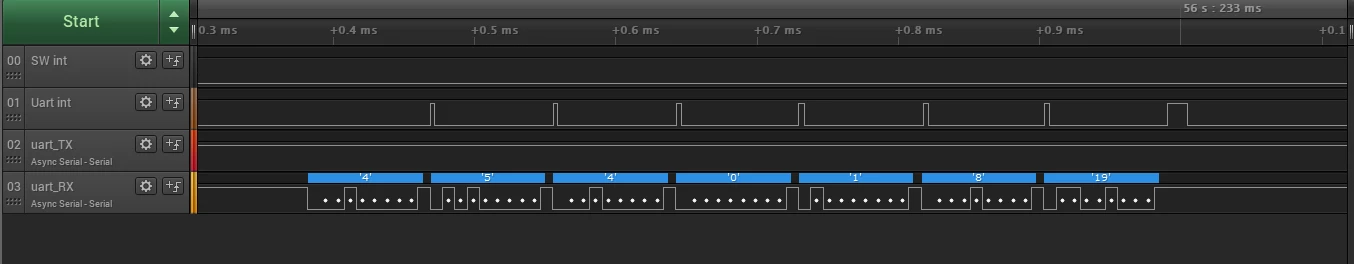

I received BLE read characteristic request , i did not response till 1 second after that i getting some junk data , after that ble got disconnected . may know the reason . here attached logic analyzer images

[Winfred LU]

What would be the slave latency?

In case that the latency is OFF, the slave (BlueNRG-2) needs to respond within the connection event interval.

What would be the supervision timeout?

The link may be disconnected due to not receiving anything in supervision timeout period.

[MCV.1]

hi Winfred , sorry for delay replay , i am not fell well , during this time , i will check this and i will update on this , i need your support on this

[MCV.1]

hi winfred

slave latency =0

Conn_Interval=9216

Supervision_Timeout=-3071

but Supervision_Timeout showing negative value , in order to come aviod this i used below api

aci_l2cap_connection_parameter_update_req();

but still showing same response , can you suggest any other options for this .
