BlueNRG: BLE Initialization Never Leaves hci_init()
Hello,
I am creating a Bluetooth app on a custom board. I used the same hardware design as the X-NULCEO-IDB05A2 expansion board, but with the sole difference being that the Bluetooth module I'm using is the BLUENRG-M0L instead of the BLUENRG-M0A (which, to my understanding, is just an internal power supply difference and that is it).
I used the SensorBLEDemo project as the base for my code, then brought it up on a separate project to ensure it worked as intended (and it does). However, when I ran the same code on my custom board, the BlueNRG initialization code acts strangely. When the function hci_init() is called, it never leaves the function and, seemingly, gets stuck there.
I call for the BlueNRG initialization in my main.c. I've attached my initialization code below. I get stuck on Line 29. I'm unsure where to look to diagnose this, since this is a HCI premade code. Can anyone help me diagnose this?
void MX_BlueNRG_MS_Init(void)
{
/* USER CODE BEGIN SV */
/* USER CODE END SV */
/* USER CODE BEGIN BlueNRG_MS_Init_PreTreatment */
battSOC = 500;
battVoltage = 428;
battPower = 0;
battMinTemp = 22;
battMaxTemp = 24;
/* USER CODE END BlueNRG_MS_Init_PreTreatment */
/* Initialize the peripherals and the BLE Stack */
const char *name = "COR";
uint16_t service_handle, dev_name_char_handle, appearance_char_handle;
uint8_t bdaddr_len_out;
uint8_t hwVersion;
uint16_t fwVersion;
int ret;
User_Init();
/* Get the User Button initial state */
//user_button_init_state = BSP_PB_GetState(BUTTON_KEY);
hci_init(user_notify, NULL); // ----------> GETS STUCK HERE!!!! <------------
/* get the BlueNRG HW and FW versions */
getBlueNRGVersion(&hwVersion, &fwVersion);
hwVersion_global = fwVersion;
/*
* Reset BlueNRG again otherwise we won't
* be able to change its MAC address.
* aci_hal_write_config_data() must be the first
* command after reset otherwise it will fail.
*/
hci_reset();
HAL_Delay(100);
PRINTF("HWver %d\nFWver %d\n", hwVersion, fwVersion);
if (hwVersion > 0x30) { /* X-NUCLEO-IDB05A1 expansion board is used */
bnrg_expansion_board = IDB05A1;
}
ret = aci_hal_read_config_data(CONFIG_DATA_RANDOM_ADDRESS, BDADDR_SIZE, &bdaddr_len_out, bdaddr);
if (ret) {
PRINTF("Read Static Random address failed.\n");
}
if ((bdaddr[5] & 0xC0) != 0xC0) {
PRINTF("Static Random address not well formed.\n");
while(1);
}
/* GATT Init */
ret = aci_gatt_init();
if(ret){
PRINTF("GATT_Init failed.\n");
}
/* GAP Init */
if (bnrg_expansion_board == IDB05A1) {
ret = aci_gap_init_IDB05A1(GAP_PERIPHERAL_ROLE_IDB05A1, 0, 0x07, &service_handle, &dev_name_char_handle, &appearance_char_handle);
}
else {
ret = aci_gap_init_IDB04A1(GAP_PERIPHERAL_ROLE_IDB04A1, &service_handle, &dev_name_char_handle, &appearance_char_handle);
}
if (ret != BLE_STATUS_SUCCESS) {
PRINTF("GAP_Init failed.\n");
}
/* Update device name */
ret = aci_gatt_update_char_value(service_handle, dev_name_char_handle, 0,
strlen(name), (uint8_t *)name);
if (ret) {
PRINTF("aci_gatt_update_char_value failed.\n");
while(1);
}
ret = aci_gap_set_auth_requirement(MITM_PROTECTION_REQUIRED,
OOB_AUTH_DATA_ABSENT,
NULL,
7,
16,
USE_FIXED_PIN_FOR_PAIRING,
123456,
BONDING);
if (ret) {
PRINTF("aci_gap_set_authentication_requirement failed.\n");
while(1);
}
PRINTF("BLE Stack Initialized\n");
/*
ret = Add_HWServW2ST_Service();
if(ret == BLE_STATUS_SUCCESS) {
PRINTF("BlueMS HW service added successfully.\n");
} else {
PRINTF("Error while adding BlueMS HW service: 0x%02x\r\n", ret);
while(1);
}
*/
// Not necessary for this code
/*
ret = Add_SWServW2ST_Service();
if(ret == BLE_STATUS_SUCCESS) {
PRINTF("BlueMS SW service added successfully.\n");
} else {
PRINTF("Error while adding BlueMS HW service: 0x%02x\r\n", ret);
while(1);
}
*/
ret = Add_Battery_Service();
if(ret == BLE_STATUS_SUCCESS) {
PRINTF("BlueMS Battery service added successfully.\n");
} else {
PRINTF("Error while adding BlueMS Battery service: 0x%02x\r\n", ret);
while(1);
}
ret = Add_Inverter_Service();
if(ret == BLE_STATUS_SUCCESS) {
PRINTF("BlueMS Inverter service added successfully.\n");
} else {
PRINTF("Error while adding BlueMS Inverter service: 0x%02x\r\n", ret);
while(1);
}
ret = Add_Fault_Service();
if(ret == BLE_STATUS_SUCCESS) {
PRINTF("BlueMS Fault service added successfully.\n");
} else {
PRINTF("Error while adding BlueMS Fault service: 0x%02x\r\n", ret);
while(1);
}
ret = Add_Control_Service();
if(ret == BLE_STATUS_SUCCESS) {
PRINTF("BlueMS Control service added successfully.\n");
} else {
PRINTF("Error while adding BlueMS Control service: 0x%02x\r\n", ret);
while(1);
}
/* Set output power level */
ret = aci_hal_set_tx_power_level(1,4);
/* USER CODE BEGIN BlueNRG_MS_Init_PostTreatment */
/* USER CODE END BlueNRG_MS_Init_PostTreatment */
}EDIT:

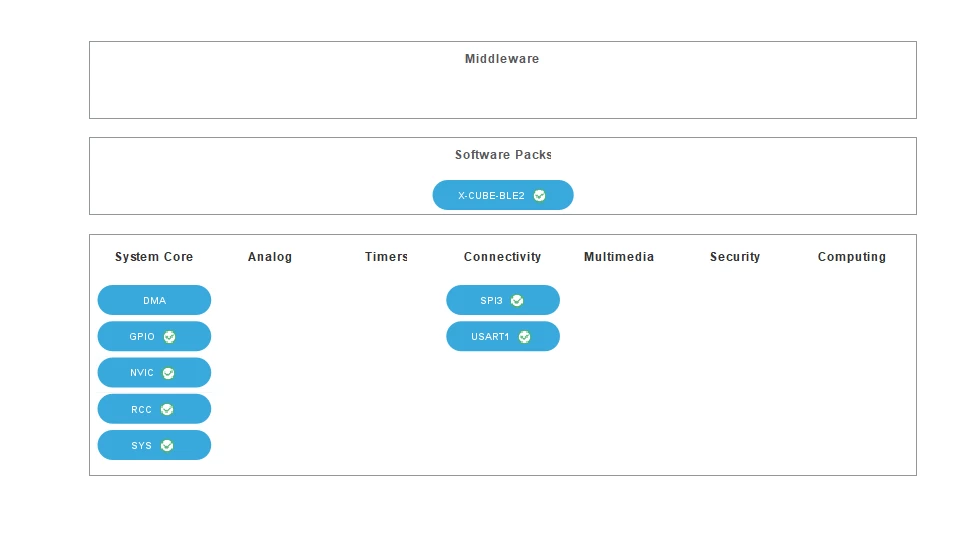

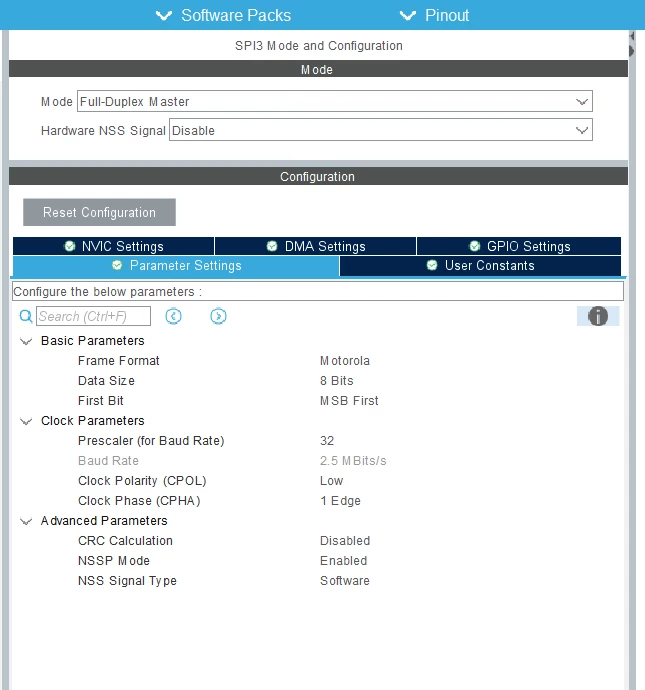

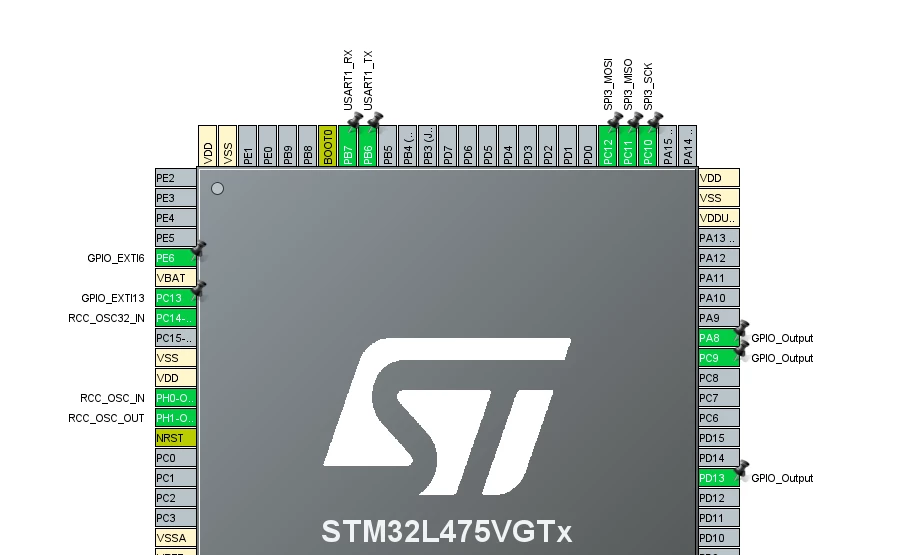

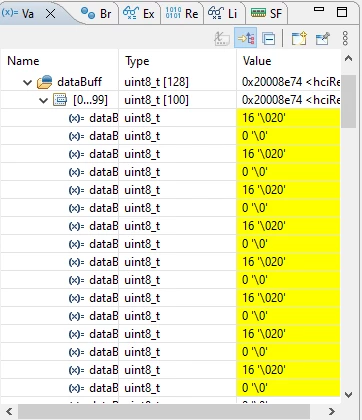

I also did a side-by-side comparison via the debugger in the hci_tl.c file. The hci_init() function is below. In my custom board, my code never goes past line 25 (if (hciContext.io.Reset) hciContext.io.Reset();).
In the Nucleo board, it does go past that line without issue.
void hci_init(void(* UserEvtRx)(void* pData), void* pConf)
{
uint8_t index;
if(UserEvtRx != NULL)
{
hciContext.UserEvtRx = UserEvtRx;
}
/* Initialize list heads of ready and free hci data packet queues */
list_init_head(&hciReadPktPool);
list_init_head(&hciReadPktRxQueue);
/* Initialize TL BLE layer */
hci_tl_lowlevel_init();
/* Initialize the queue of free hci data packets */
for (index = 0; index < HCI_READ_PACKET_NUM_MAX; index++)
{
list_insert_tail(&hciReadPktPool, (tListNode *)&hciReadPacketBuffer[index]);
}
/* Initialize low level driver */
if (hciContext.io.Init) hciContext.io.Init(NULL);
if (hciContext.io.Reset) hciContext.io.Reset();
}
