Can we use any STM32 Nucleo board to customize STUSB4500 NVM settings?

[BHan.1]

Hi,

​

I'm trying to configure my STUSB4500 by following the STSW-STUSB002 quick start guide.

I have everything ready except for the NUCLEO-F072RB board.

Instead, I have Nucleo-H743ZI2 and the STM32F769 Discovery board, but I'm pretty sure I can't just drag and drop the F072RB board binary to my boards.

Is there a way to tweak the binary or create a new binary to work on Nucleo-H743ZI2 or the STM32F769 Discovery board?

I can buy the Nucleo-F072RB for $15, but if I could use my current boards, it will be great.

Thank You

[Gregory Go.]

Hello,

The GUI for STUSB4500 (STSW-STUSB002) only works with Nucleo-F072RB board.

But there is a way to program the STUSB4500 with any STM32-Nucleo-board, by using the software example to program the NVM memory of STUSB4500:

STSW-STUSB004 : NVM customization library for STUSB4500

https://www.st.com/content/st_com/en/products/embedded-software/evaluation-tool-software/stsw-stusb004.html

Steps:

1/ Port the NVM customization library for your STM32 version.

(By default the example is compiled for STM32F072RB)

2/ Use the STUSB4500 GUI offline to generate a customization file

3/ Run the ported STM32 firmware with the generated file, to flash the STUSB4500

[BHan.1]

Hello Greg,

​

Thanks for the answer.

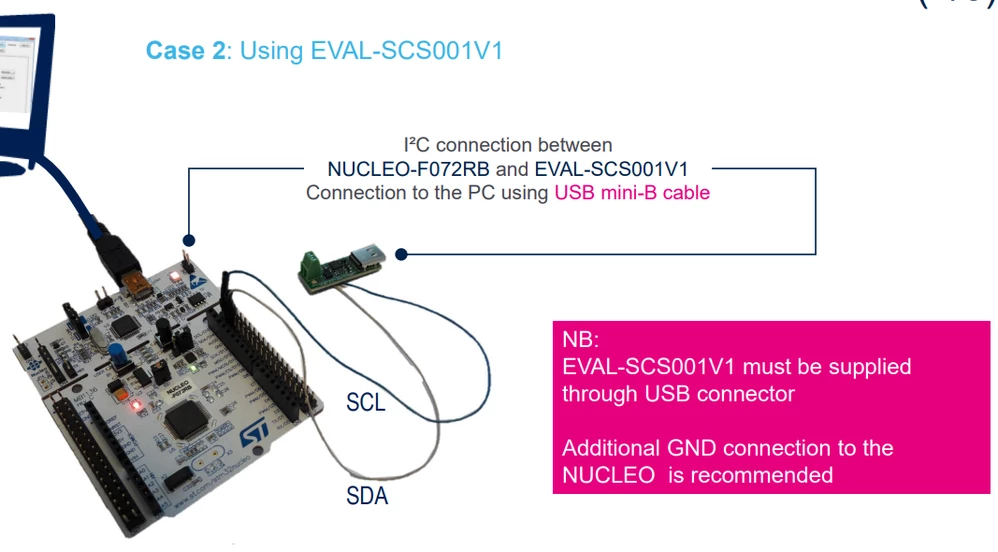

Just a follow-up question. When we do use the Nucleo boards to set STUSB4500, the STSW-STUSB002 guide picture shows only SCL and SDA connections to the Nucleo board.

Does "EVAL-SCS001V1 must be supplied through USB connector" mean I have to connect a separate 5V power supply to the STUSB4500 board or I have to jump power from the Nucleo board to the STUSB4500?

The information on the page is a little confusing.

Thank you

[Winfred LU]

Both ways shall work.

Supplying through USB connector means to supply Vdd with 5V from Vbus.
