LSM303AH

[Samuel Schalkwyk]

Good day

I have a STEVAL-MKI173V1 which is for the LSM303AH.

I have to integrate this on a project in VS code, as there is no Zephyr driver for this, I am trying to implement this directly on I2C.

The device has two addresses one for the accel and the other for the magn, the supplied addresses

/** I2C Device Address 8 bit format **/

#define LSM303AH_I2C_ADD_XL       0x3B

#define LSM303AH_I2C_ADD_MG       0x3D

does not respond when a "device is ready" check is done, I don't see any other addresses in the datasheet.



I got these from the header file, supplied under HAL

I must be missing something, I have tested other I2C devices on the same port and it works just fine.



Thanks in advance



Sam

[Foued_KH]

Hello @Samuel Schalkwyk ,

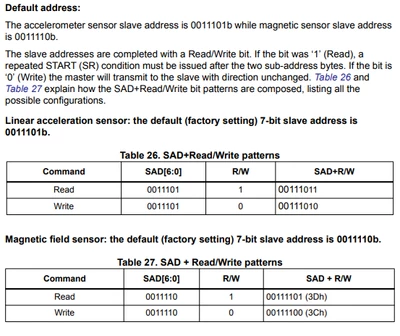

Could you please check this section in the datasheet : https://www.st.com/resource/en/datasheet/lsm303ah.pdf

Foued
