ST60 Arduino Shield B2265D Eval Board User Manual / Schematics

[wgithens]

Hi,



We have two ST60 eval boards and we are trying to configure them for test.  The boards arrived with no documentation, and there are a lot of jumpers that we can set.  We are trying to get either a user manual for hte board or the schematics so we can determine what we need to set / configure in order to get it operational.



Thank you,

Will

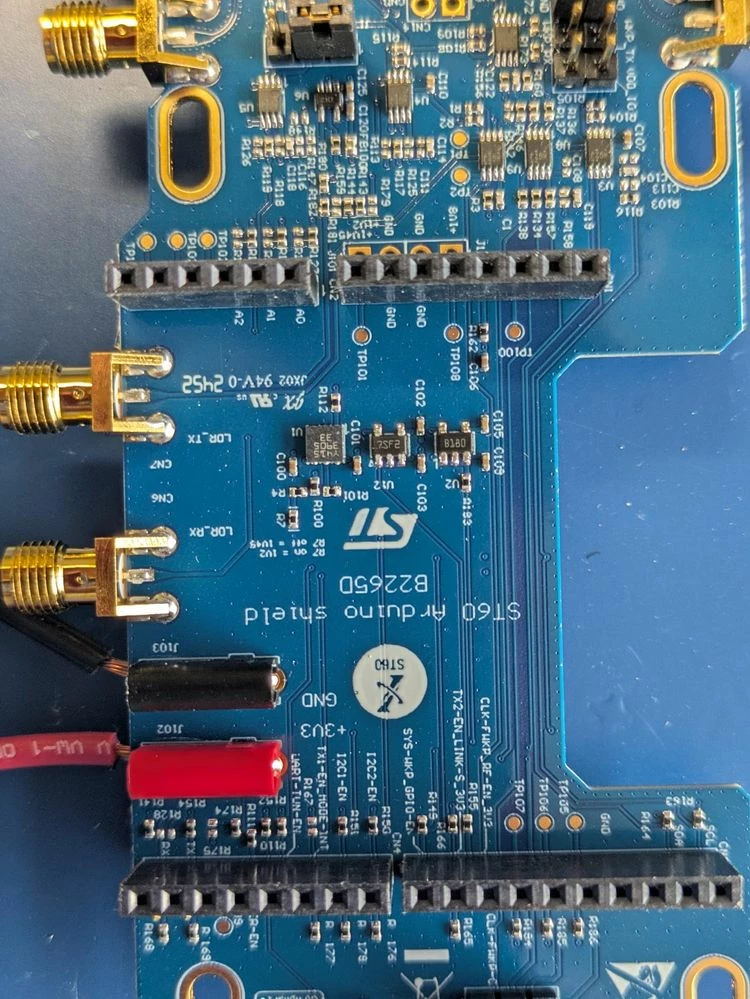

ST60 Eval Board

[Chris21]

Based on: https://community.st.com/t5/interface-and-connectivity-ics/st60-60ghz-transceiver-development-board/m-p/638632, it appears that ST does not make such documentation available to the general public.

[TarikAb]

Hi wgithens,

Please contact the person (local ST sales rep or distri) who sent you these boards to get the full documentation.

Regards,
