Question

ST8024CDR . Are support smart card ( ISO 7816-3 Integrated Circuit Card (ICC) Digital Controller) reset synchronous and asynchronous

  • June 5, 2023
  • 0 replies
  • 732 views

Please help i need to know about. Smart card interface ST8024CDR it can support Smart card ISO7816-3 in reset mode synchronous or not ? Now i using this ic it support only asynchonously

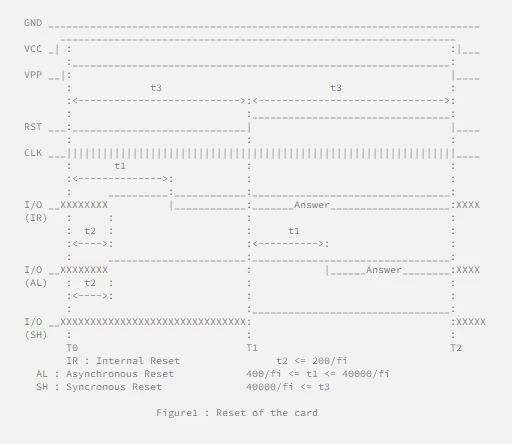

_legacyfs_online_stmicro_images_0693W00000dK32VQAS.pngasynchonously reset timming diagram

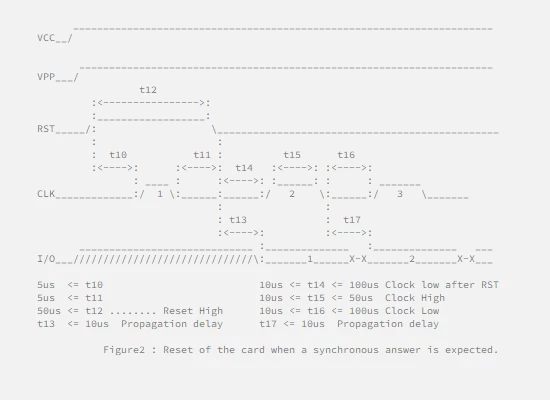

_legacyfs_online_stmicro_images_0693W00000dK32kQAC.pngsynchonously reset timming diagram

Ref :

https://cardwerk.com/iso-7816-part-3/

    This topic has been closed for replies.
