Solved

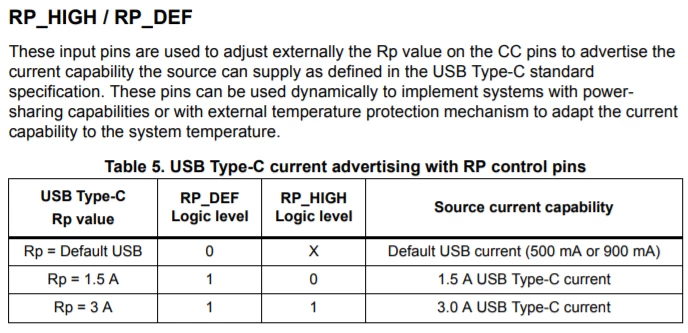

STUSB1700 For current 1.5A to 3A variation or lesser , can we still use 3.0A USB type C current source capability? OR Can we defining Rp_def logic level as 1 and Rp_HIgh also 1 for variable current from 500 mA to 3A? Thanks
This topic has been closed for replies.
Yes, as it defines the source current capability. The actual current depends on the device being attached.
