why bluenrg1 Controller privacy requires 32MHz High Speed Crystal?

[Zhou JianQiang]

Hi :

I noticed that Controller privacy requires 32MHz High Speed Crystal in BlueNRG-1_2 DK 3.2.3\Project\BLE_Examples\BLE_Privacy\src\BLE_Privacy_main.c, but I don't find any document about this.

Meanwhile, my platform has 16M high speed crystal, I modify HS_SPEED_XTAL_32MHZ to HS_SPEED_XTAL_16MHZ then flash this demo and can't scan the bluenrg1 device(the demo has name "pslave"). is there any workaround so that I can use Controller privacy with 16M high speed crystal?

@LauraCx @Rene Lenerve @Laurent LOUAZON

[Laurent LOUAZON]

Hello,

This is right, privacy requires 32MHz xtal as more PIPS are required.
A 32MHz xtal is mandatory for such application. No workaround.

Regards
Laurent





[Zhou JianQiang]

Hi @Laurent LOUAZON

Thank you for your reply.

But according to BlueNRG Errata sheet, ADC does not work properly when a 32 MHz system clock is being used. Does this mean we can only choose one between ADC and Controller privacy?

[Laurent LOUAZON]

Hello,



Yes this is unfortunately correct.



Laurent

[Zhou JianQiang]

Hi @Laurent LOUAZON :

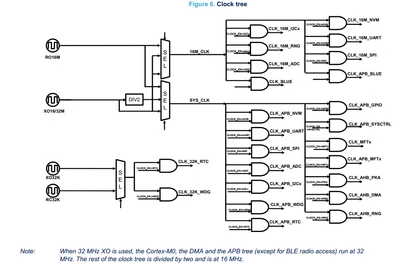

accroding to following clock tree, 32M XO can be devided with 2. Do you mean even if I use 32M XO then devided with 2, ADC and Controller privacy still can't work together?

meanwhile, Is there any method that I can enable bonding with 16M XO? I can't enable bonding using BlueNRG1 and android 13. Attachment is my code.
