AIS2120 CRC and ​​workflow​​

  • September 30, 2025
  • 1 reply
  • 313 views

wechat_2025-09-30_123024_833.pngwechat_2025-09-30_123322_374.png微信图片_2025-09-30_111851_590.png

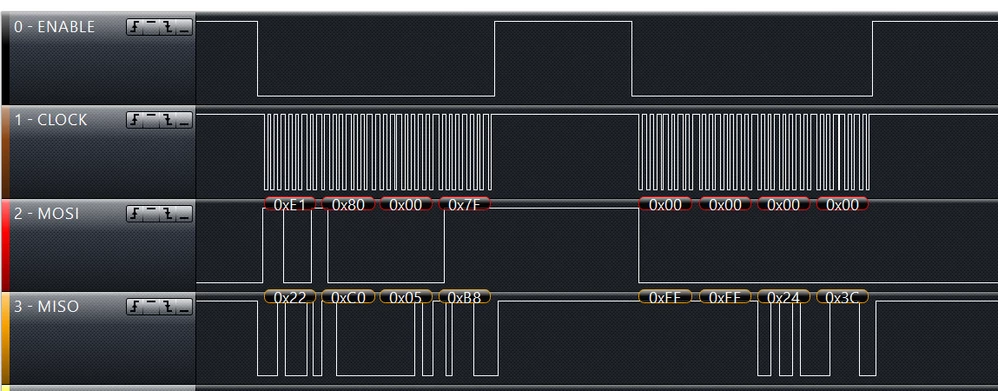

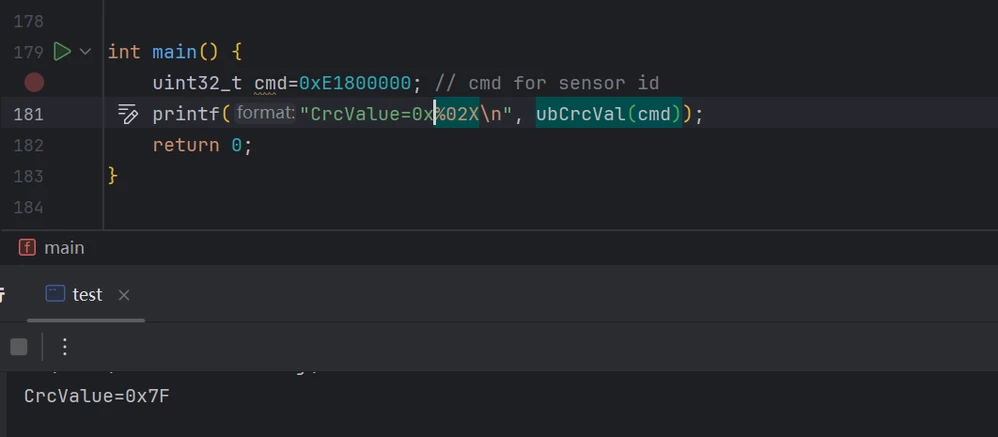

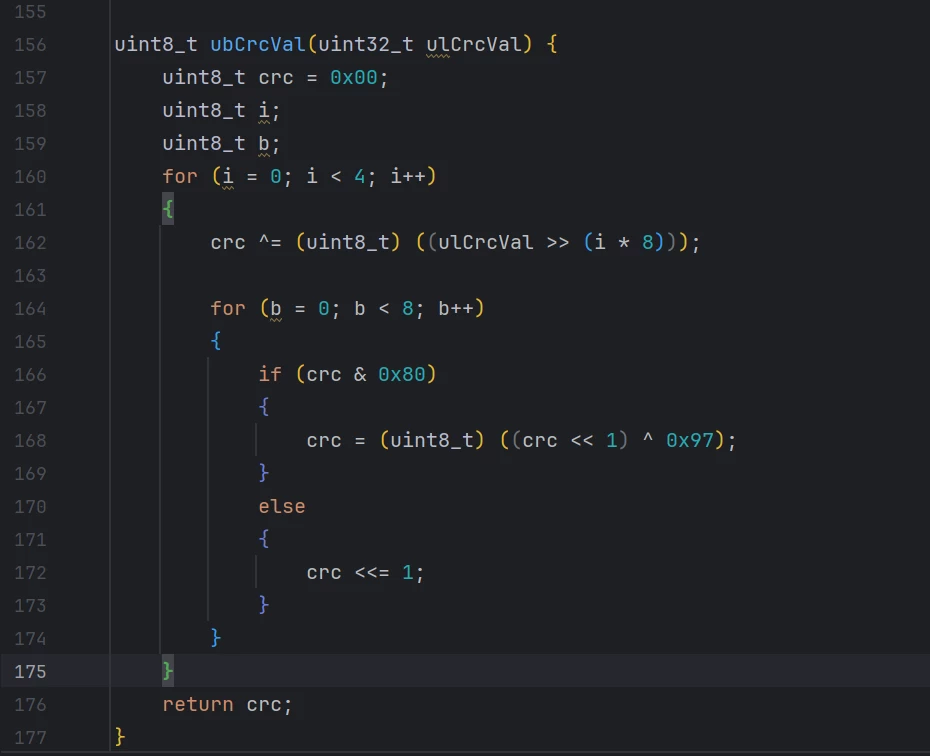

Could anyone give me some advice on debugging the AIS2120 accelerometer sensor? I've included my CRC check function above, as well as the data sent and received via SPI, but I still can't read the correct sensor ID. Thank you very much for your help!

Best answer by Federica Bossi

Hi @Yz2 ,



Since AIS2120SX is an obsolete it is not supported anymore. However you can look at this previous question on st community that could help you!

1 reply

Federica Bossi
Federica BossiBest answer
Technical Moderator
September 30, 2025

Hi @Yz2 ,



Since AIS2120SX is an obsolete it is not supported anymore. However you can look at this previous question on st community that could help you!

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.
Y
Yz2Author
Associate II
October 8, 2025

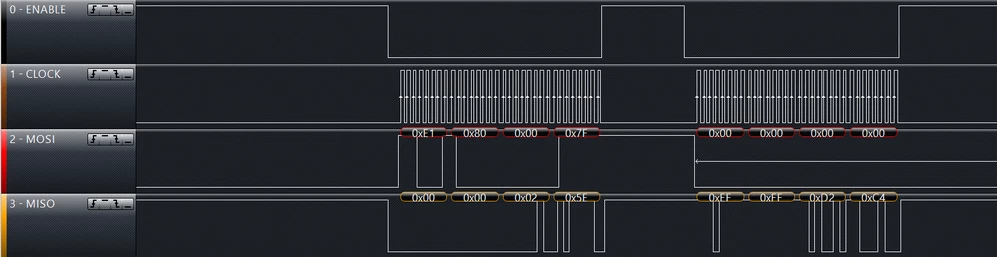

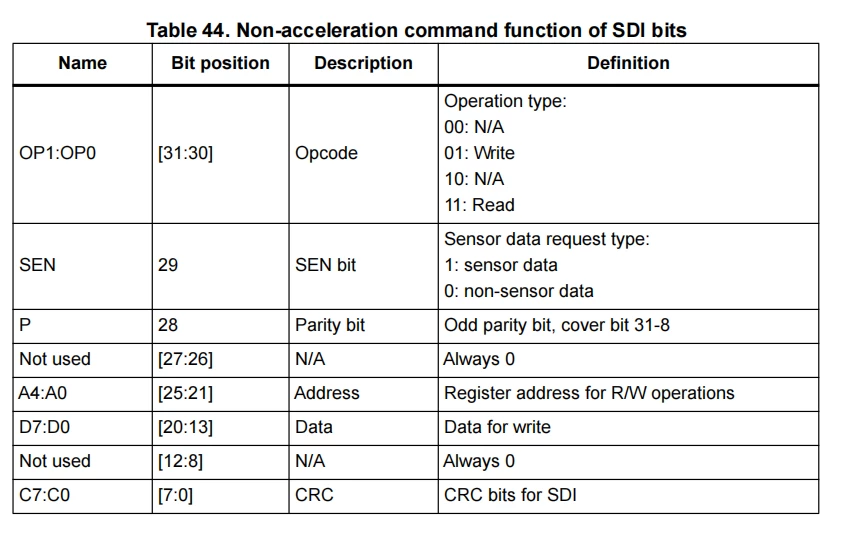

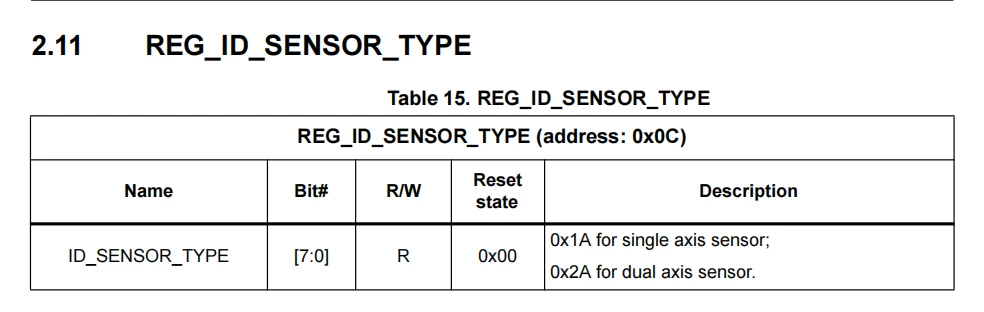

微信图片_2025-10-08_090139_754.png微信图片_2025-10-08_094543_846.png微信图片_2025-10-08_094627_918.pngReferring to the technical manual, in order to read the device ID, I sent the following data. Could you please check if it is correct? Thank you very much for your help!
