ISM330DLC measurement units

[[e-mail]]

What are the units of the ISM330DLC reported values? Specifically

• OUTn_G to units of acceleration (g)?
• OUTn_XL to units of angular velocity (°/s)?

I couldn't find this in your docs, may have missed it



[Federica Bossi]

Hi @[e-mail] ,

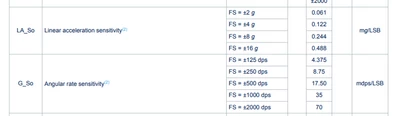

If you have multiply these values by the sensitivity they are in mg or mdps, otherwise they are in LSB.

If my reply answered your question, please click on Accept as Solution at the bottom of this post. This will help other users with the same issue to find the answer faster

[[e-mail]]

Sensitivity there excellent, thank you Federica!! It has been awhile and I lost track of that

Thank you :)
