Looking for alternative (drop in) product to BMG250 by Bosch Manufacturer

[S.VR]

..

[Peter BENSCH]

Welcome, @S.VR​, to the community!

There is no p2p and drop-in alternative, but you can have a look at the I3G4250D.

If the problem is solved, please mark this thread as answered by selecting Select as best, as also explained here. This will help other users find that answer faster.

Good luck!

/Peter

[Eleon BORLINI]

Hi @S.VR​ ,

alternatively, you might consider the LSM6DSO(X) device (which is an IMU, so axl + gyro).

Both have the same package dimension (2.5mmx3mm, LGA 14L) and pinout.

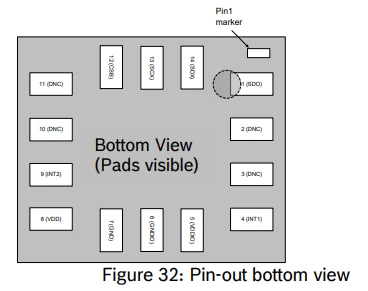

Bosch BMG250, see datasheet p.60:

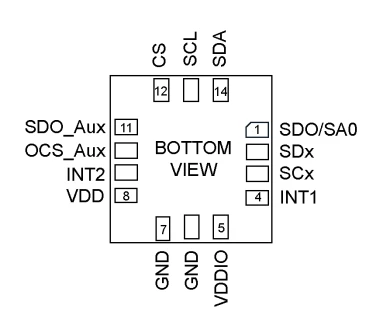

ST LSM6DSO(X), see datasheet p.6:



You might need some minor software changes.

-Eleon
