LSM6DSV adc resolution for accelerometer and gyroscope

  • July 22, 2024
  • 1 reply
  • 912 views

Hi, I am using MKI239A and MKI109V3 with LSM6DSV (IMU).

Knowing the full scale of accelerometer and gyroscope, I still need resolution information to calculate the exact readings. I did not find relevant resolution info on data sheet...

Could you please provide some information? thanks for your help! @Federica Bossi

Best answer by Federica Bossi

Hi @ZSong ,

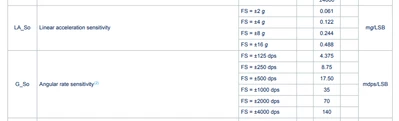

Do you mean how to get dps and mg from LSB? You should look at the sensitivity reported in the datasheet:




1 reply

Federica Bossi
Federica BossiBest answer
Technical Moderator
July 23, 2024

Hi @ZSong ,

Do you mean how to get dps and mg from LSB? You should look at the sensitivity reported in the datasheet:
