LSM6DSV FSM with multiple external sensors but how to choose which one with SINMUX command

[NWang.1]

Hello ST guys:

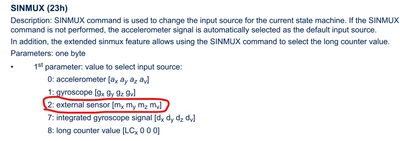

We have used LSM6DSV FSM function and LSM6DSV supports 4 external sensors. We have seen that SINMUX command is used to change the input source for FSM as follows:

But which one of four external sensors will be chosen to use for FSM? How to implement this function for FSM and could you give us any good suggestions? Thank you very much.

BRs.

[Roger SHIVELY]

Hello @NWang.1



This post has been escalated to the ST Online Support Team for additional assistance.  We'll contact you directly.



Regards,

Roger
