SensorTile(STEVAL-STLKT01): Cannot build example project FP-SNS-ALLMEMS1 for project "STM32L476JG-SensorTile"

[MikeWang]

Hi,

I recently bought a SensorTile(STEVAL-STLKT01) and I want to modify the default project for my own usage case.

Based on the information I found, I downloaded the source code from https://www.st.com/en/embedded-software/fp-sns-allmems1.html (Github source) and then I opened the project "STM32L476JG-SensorTile" with CubeIDE Version: 1.17.0 and then I tried to build this project without any modifications.

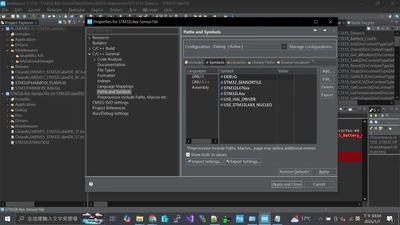

The first problem I encountered is that the defined variable "STM32L4xx" seems not exist so I have to add it manually into the path and symbol property:

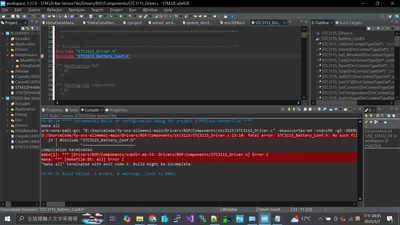

However, I encountered another problem that the header file "STC3115_Battery_Conf.h" is not exist:

I am completely stuck at this point since I cannot find it anywhere even in the Github....

Can someone guide me how to build this project and download it to the SensorTile platform?

Thank you!

BR,

Mike



[Salvatore Curti]

Hello,

the latest version of the package FP-SNS-ALLMEMS1 that support the SensorTile (STEVAL-STLKT01) board is 4.2.0 (the latest version of the package is 4.3.0).

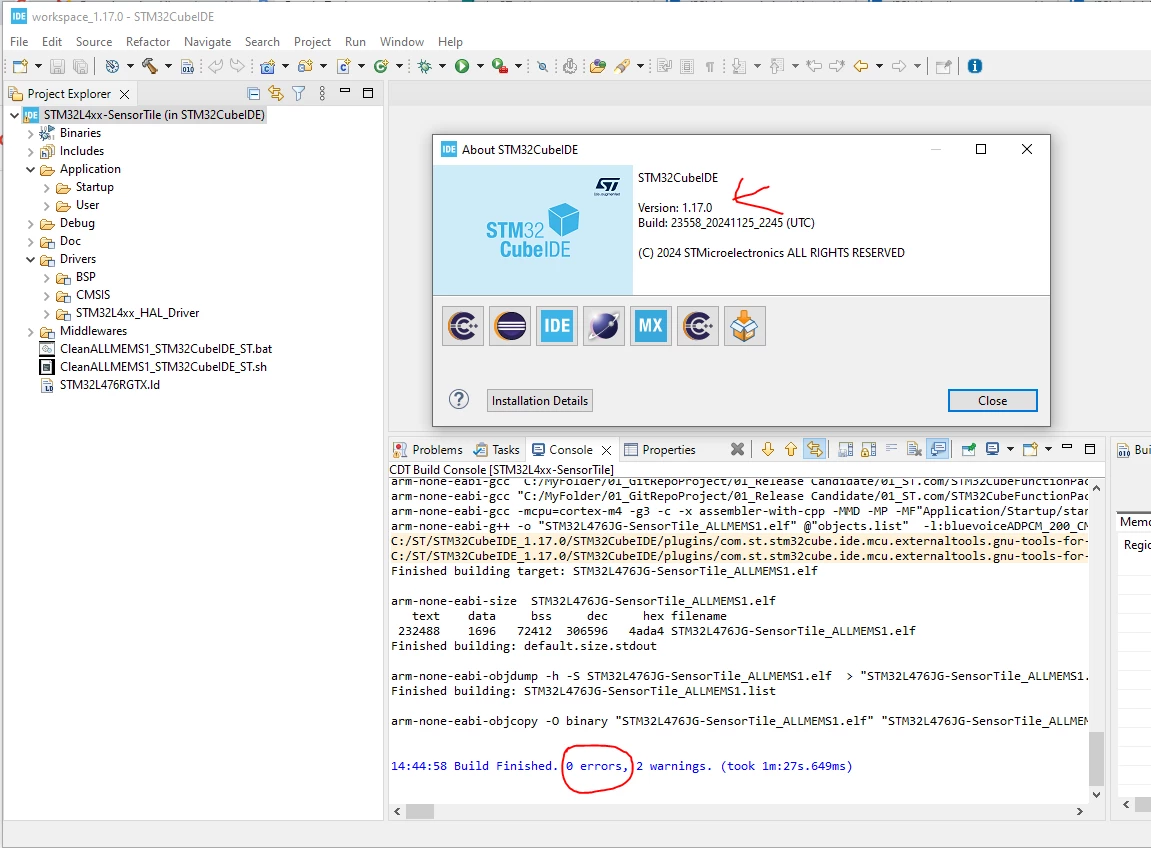

I downloaded the version 4.2.0 from https://www.st.com/en/embedded-software/fp-sns-allmems1.html, I open the STM32CubeIDE project using the version 1.17.0 of the tool, I build the project and I do not see any problem (see the image below or attachment)





The warnings are known and referred in the readme and in the release note.

If your problem persists, I suggest you first to uninstall and after to install the STM32CubeIDE tool

Regards,

Salvatore Curti.
