Find part from marking code

  • May 13, 2019
  • 1 reply
  • 3766 views

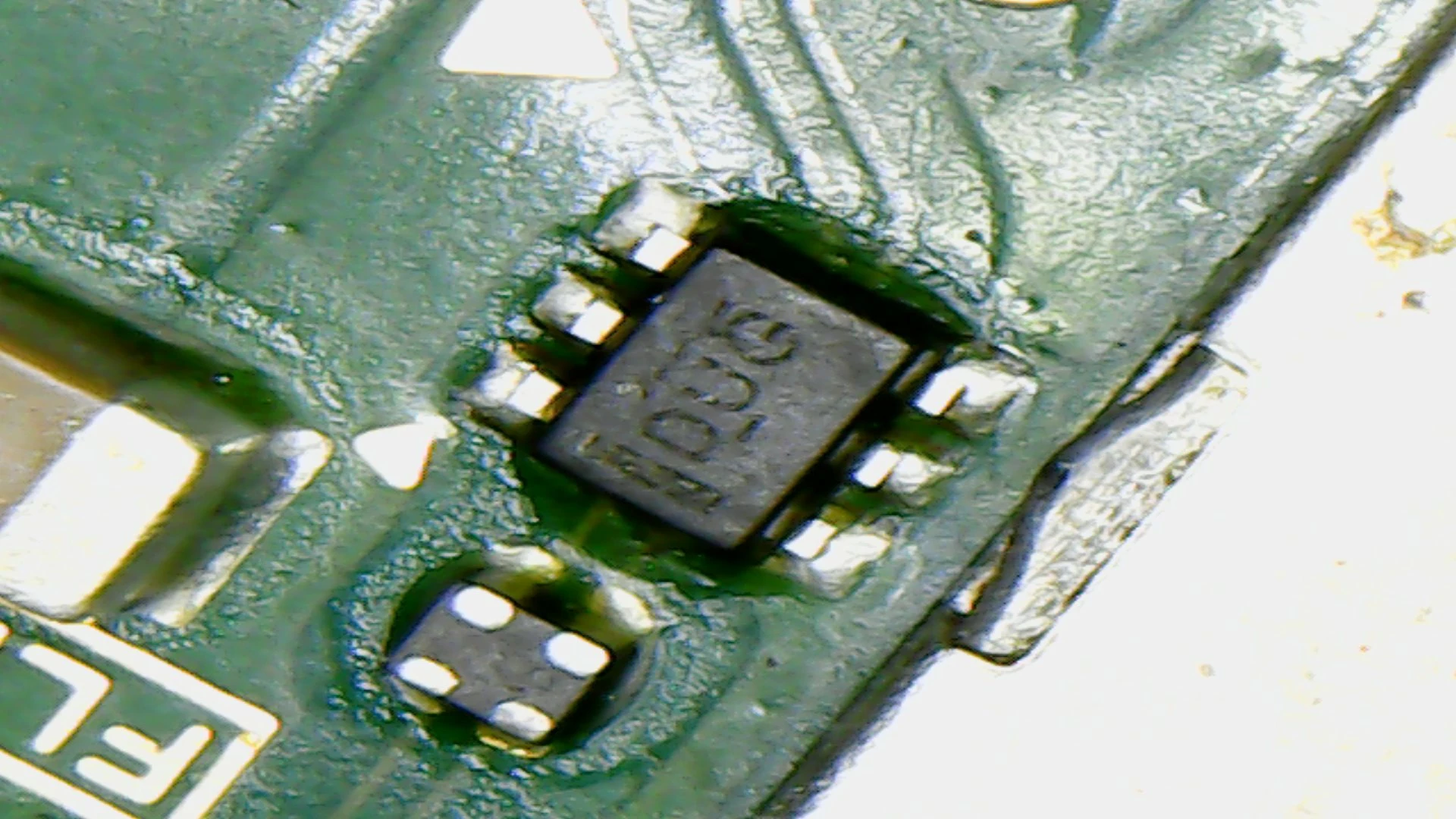

I am trying to find ST micro part from the marking code on it. I think it might be an ESD protection diode or a Transistor. Marking on it is either DUG or 7C

Can someone help me find the part number from this?

This topic has been closed for replies.

1 reply

Mon2
Senior III
May 14, 2019

Looks to me to be a 6 pin ESD diode array (by TI - not ST) and the device in front is most likely an EMI filter.

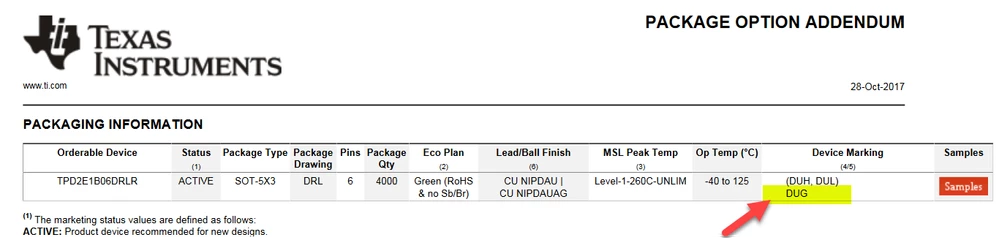

See this datasheet from Texas Instruments:

https://www.ti.com/lit/ds/symlink/tpd2e1b06.pdf


MOwen
MOwenAuthor
Associate
May 14, 2019

THANK YOU!!! I cant describe how grateful i am you identified this for me, ive been trailing the internet for a week!
