Got the following error when I tried to click on the .bat file generated by eDesignSuite. No value found for registry key: "HKEY_CLASSES_ROOT\SIMetrixSchematic\shell\open with STMicroelectronics eDSim Electrical simulator\command"

[EHD]

..

[Patrizia BELLITTO]

Hello!

Could you give more details? Which design are you using? Can you share here the zip file you are downloading from eDesignSuite?

Thanks

Patrizia

[EHD]

Hi Patrizia,

Attached is the zip file, all I did was click on the eDSim bat file, and the cmd window popped up with that error message. Thanks.

[Patrizia BELLITTO]

We were able to start the simulation without problems. Which eDSim version do you have? Does it happen only for this bat file or even with other export?

[EHD]

It is the newest. I do have issues with python installation (wait for IT to approve), will that cause the issue?
Ellen Ding
Expert Field Applications Engineer
T: [phone]
E: [e-mail]
Arrow Electronics | arrow.com

[Patrizia BELLITTO]

If that value in the registry is empty, maybe the eDSim installation has been done and completed with a different user respect to that one you are using now to lauch the .bat file. Could you verify?

[EHD]

Thank you, it is all good now.

Ellen Ding
Expert Field Applications Engineer
T: [phone]
E: [e-mail]
Arrow Electronics | arrow.com

[Marco FICHERA]

Hi @EHD​ ,

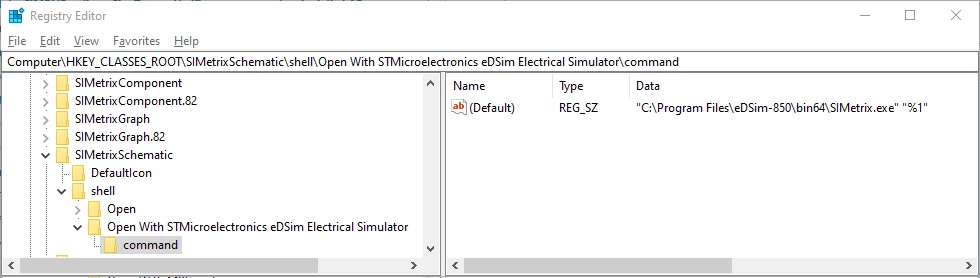

you should see something like this in your registry:



With the reg key reporting something like this:

"C:\Program Files\eDSim-850\bin64\SIMetrix.exe" "%1"

Regards

Marco
