Hi, My Onkyo receiver got frozen and behaving stubborn. Can I program M95640WP using CH341A Programmer any help in this matter shall be highly appreciated. datasheet included here https://ibb.co/1JTWkLs thanks in advance Modify message

[Pbhat.1]

Hi,

My Onkyo receiver got frozen and behaving stubborn.

Can I program M95640WP using CH341A Programmer

any help in this matter shall be highly appreciated.

datasheet included here

thanks in advance

[Tesla DeLorean]

You'll likely need to consult with the author of the programmer code.

The part documentation/datasheet can be found here

https://www.st.com/en/memories/m95640-w.html

[MM..1]

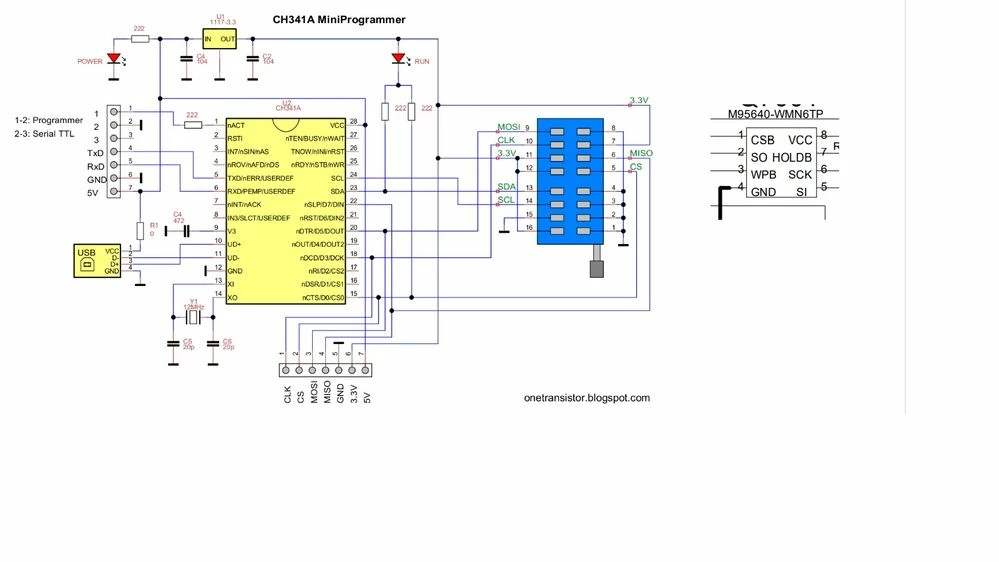

Seems when you rotate memory IC and place it to upper 8 pin in programmer, then connection will be ok.

Next step is sw setup....

[Pbhat.1]

thanks for the suggestion.

I was also thinking the same way but, surprised to see that on reversing the IC the programmer's 7th & 8th point (11 & 12) both having 3.3V

[MM..1]

Pin HOLD is too connected to Vcc then no problem here, i mean bigger step will sw .
