How to find which pin is what on the LM338K?

This topic has been closed for replies.

Best answer by Tesla DeLorean

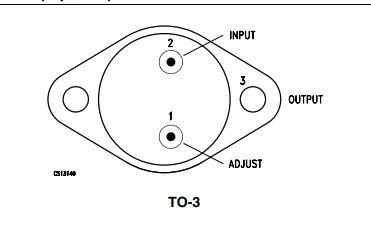

The bit you cropped off tells you this is a view from top, the pins come out the bottom.

The case is metal and at the output voltage

Pins slightly off-center, to the right

Guru

The bit you cropped off tells you this is a view from top, the pins come out the bottom.

The case is metal and at the output voltage

Pins slightly off-center, to the right

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..

Associate

So is it assumed that when looking from the top and can read the writing pin 1 is on the right?

Technical Moderator

Correct, if you look "through the case" as the data sheet suggests, ADJ (pin 1) is slightly to the right of centre, as @Community member mentioned.

If you look from below so that the two connection pins are above the centre, then ADJ is on the left.
