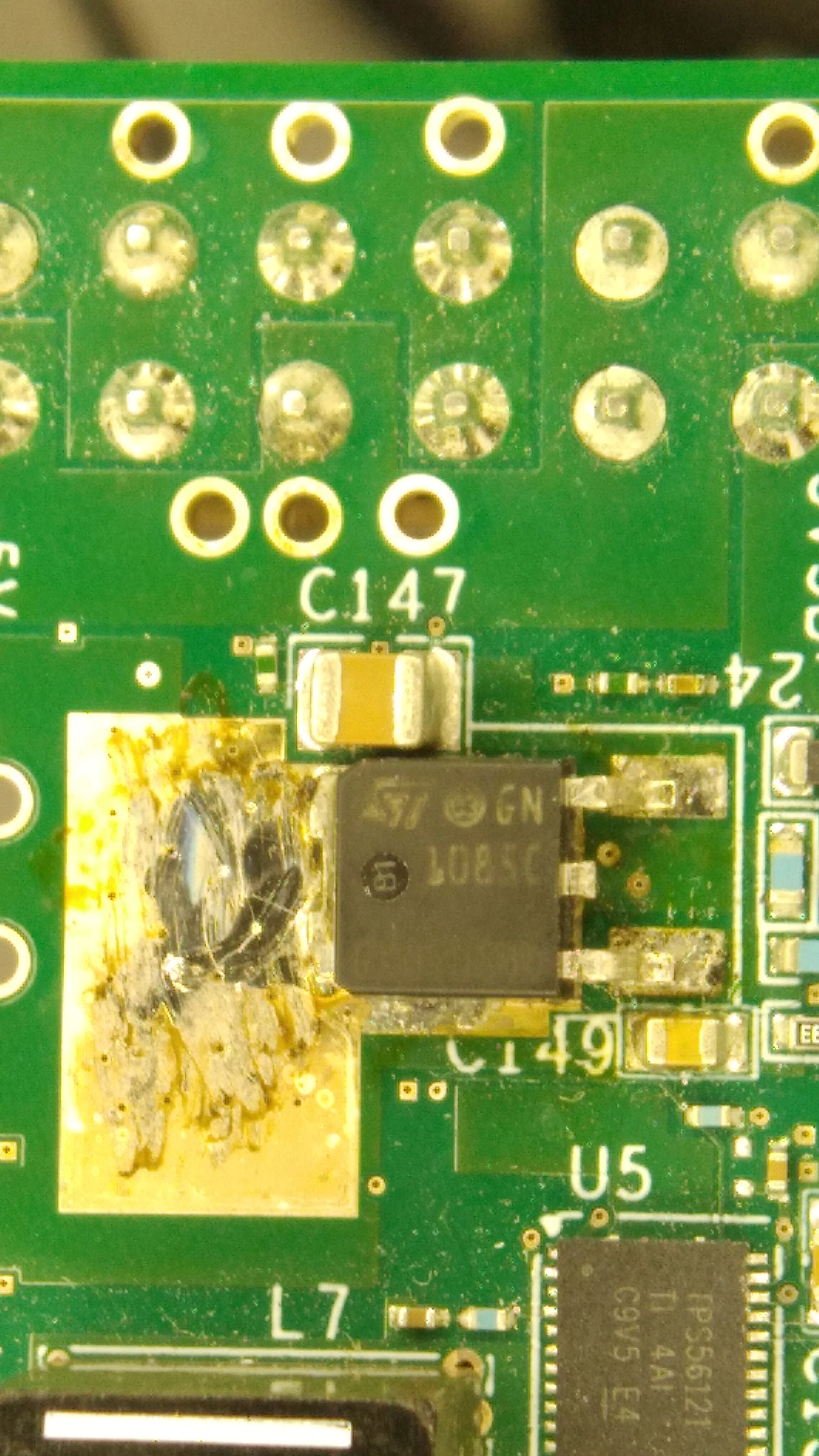

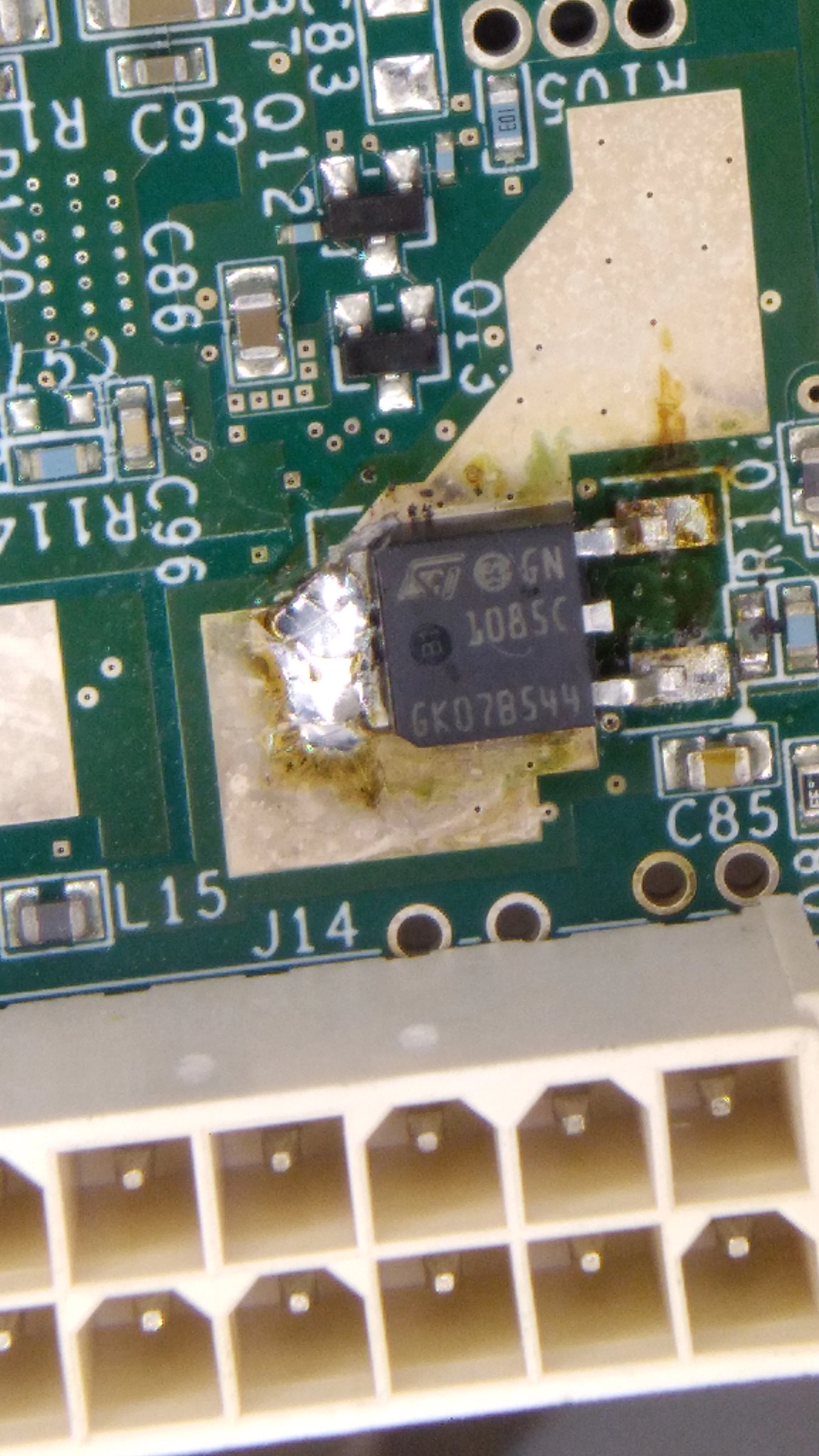

I would like to get a datasheet for a ST Micro product, I have attached a photo of the device

[Ksimp.1]

..

[Peter BENSCH]

It's an LD1085CD-TR in DPAK (TO252) which has been already discontinued.
There is still the LD1085D2TR in D2PAK (TO263), but due to the bigger package it is not a drop-in replacement.
Does this answer your question?
Regards
/Peter

[Ksimp.1]

Yes it does Peter, thank you very much

Keith

[Peter BENSCH]

Great!
If the problem is resolved, please mark this topic as answered by selecting Select as best. This will help other users find that answer faster.

Thank you and regards
/Peter

[Ksimp.1]

Just one other question, the regulator comes in different voltages, do I have the LD1085CDT which is an adjustable voltage output?

[Tesla DeLorean]

These both look to be a fixed voltage, you should check the south pad is ground, or goes to ground via a resistor. The one on the top side, doesn't look to be a divider, and this likely a standard voltage supply rather than something novel.

This looks to have been worked over several times, are you sure there isn't something else amiss with the circuit. Perhaps sketch out a schematic as you can discern it.
