Identify this part?

[CXTURBO]

Edited to place the image in the post - for easier viewing.

---

Hello,
This is my first time posting.
I am trying to find the P/N from the part's marking.
If you know it, please let me know.

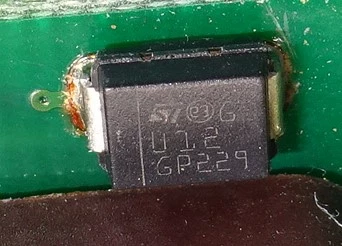

Engraving: GP229

Guess: Schottky barrier diode STPS2L60 - 2A, 60V. Is that correct...?

If you have any information, please let me know. Thank you.





[AScha.3]

Hi,

marking could be ... GU

Look, what it should do probably in the board : diode or ESD protection ?

[CXTURBO]

Thank you for getting in touch.
I repair faulty power supplies, circuit boards, etc. that are entrusted to me by customers.
In this case, I needed this diode to repair an AC servo driver.
As I don't have a circuit diagram, I don't know its purpose (protection, ESD, etc.).
I plan to create a circuit diagram depending on the situation, but I was in a difficult situation as I couldn't install an uncertain part.
Is it likely that the SM6T200A mentioned in your comments is the P/N?
Also, is there a way to identify the P/N from the engraving?
Thank you in advance.



Please excuse any strange notation as I am using Japanese translation software.

[CXTURBO]

I'm sorry I don't really understand how to use it.
Regarding the STTH102/112, as advised by Peter, I'd like to remove the parts and measure them.
I'll comment once I've finished checking.
Thank you in advance.

[Peter BENSCH]

Welcome @CXTURBO , to the community!

You'll find the marking in the 2nd line, i.e. U12.

Unfortunately, the marking is ambiguous and could refer to either STTH102 (Utrafast 200V) or STTH112 (Utrafast 1.2kV) , which differ significantly from the blocking voltage and the forward voltage. For a successful replacement, you should therefore try to find out what the maximum voltage can be.

Regards
/Peter
