Please provide the pin numbering details for the part ECMF02-2AMX6

[Divya Jyothi]

..

[FGUIT]

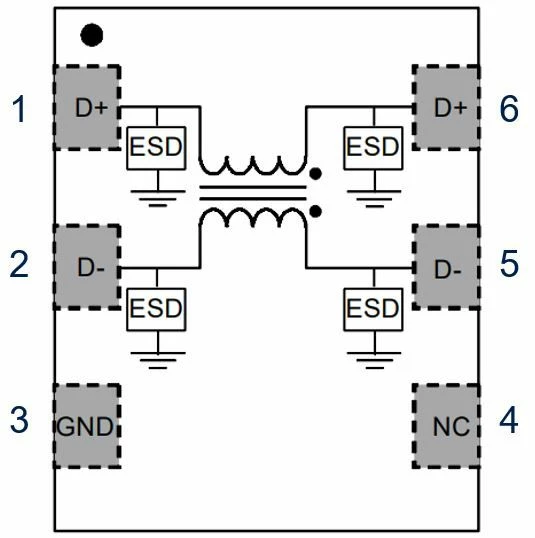

Is below picture what you are looking for?

[Divya Jyothi]

Hi,

Thanks, this is the one i am looking for.

Can it is possible to connect D- signals to PIN no 1 & 6 and D+ signals pin 2 and 5 ?

regards,

Divya

[FGUIT]

Hi,

Yes, you can connect D- signals to PIN no 1 & 6 and D+ signals pin 2 and 5.

Regards.

Fabrice.
