Schematic Request for I-NUCLEO-LRWAN1

[Gencay]

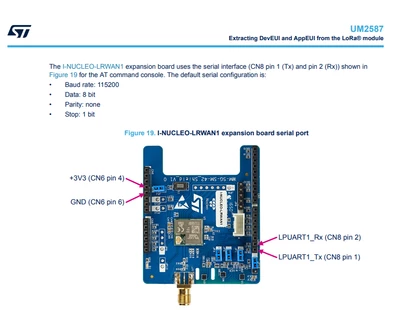

Hello, I have a pair of these boards on my hand, there is no information regarding WM-SG-SM-42_Shield_v1.0 board its jumpers pinout etc. Could you please provide a schematic or more detailed guide whats available? I've seen on early posts some got the reference design via mail. Could you please provide for me also?

Thanks!



[Peter BENSCH]

Unfortunately, the I-NUCLEO-LRWAN1 has been discontinued for a long time, which is why there is no documentation for it from ST anymore. If nothing can be found in the depths of the (supposedly) never-forgetting internet, unfortunately no one will be able to help you.

Sorry I can't give a more pleasant answer.

Regards
/Peter

[Andrew Neil]

The board uses a module from USI - they have a GitHub repository, which includes the schematics:

https://github.com/USIWPModule/USI_I-NUCLEO-LRWAN1



[Gencay]

Thank you Andrew, very helpful.
