STM6600CS25DM6F power consumption
- September 9, 2019
- 0 replies
- 651 views
Hello everybody,

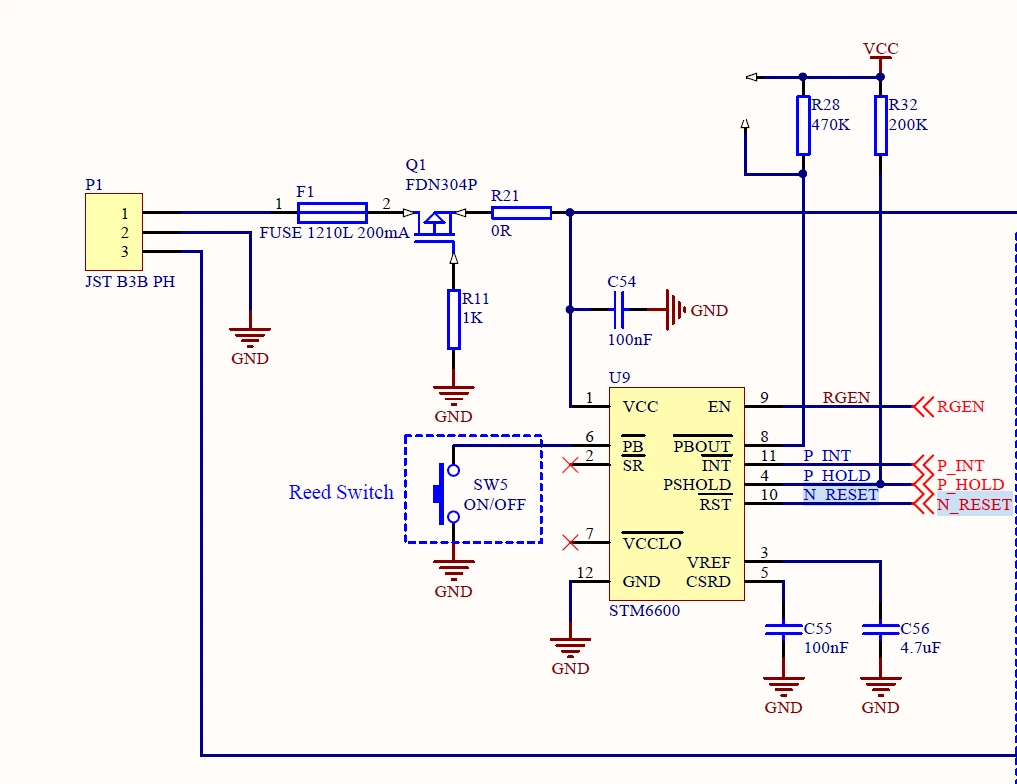

I am experiencing an unexpected power consuption from the STM6600CS25DM6F. When the button is pressed an extra amount of current is drawn (40uA) from the circuit. I know that some of it is due to the pull-up resistor on the pbout pin (about 6uA). Is this an expected current consumption?
