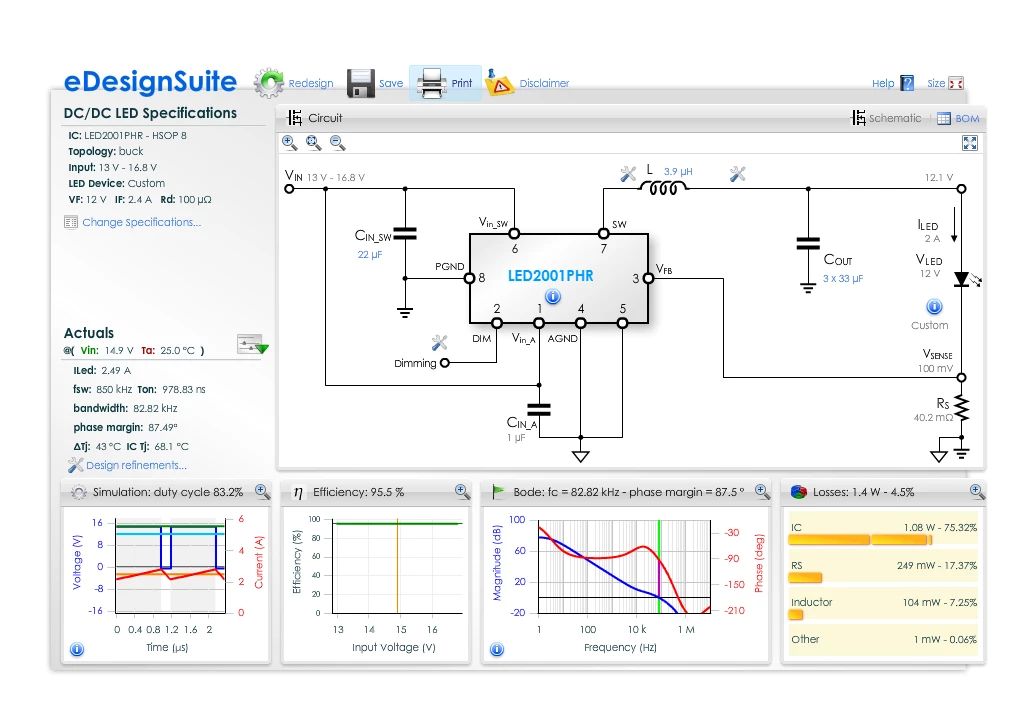

What does the schematic mean when it shows 3 x 33uf capacitor?

  • November 26, 2019
  • 2 replies
  • 1190 views

The bom shows a 33uf Cap. Does the schematic want me to do the 3 in parallel or series? If in series can I just use a 11uF cap? if parallel is there any downside to using just 1? they take up a lot of PCB space.

This topic has been closed for replies.
Best answer by Tesla DeLorean

I'd assume in parallel to get 100uF

Perhaps chat with an FAE in the local sales office.

2 replies

Tesla DeLorean
Tesla DeLoreanBest answer
Guru
November 26, 2019

I'd assume in parallel to get 100uF

Perhaps chat with an FAE in the local sales office.

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
Uwe Bonnes
Chief
November 27, 2019

Is is there to get low ESR/ESL and distribute power disssipation caused by the ESR of the Cs and the switchening currents
