Can I implement LVGL on STM32H743IIT6 with a custom LCD 1024 x 600 HD

[KNaim.1]

Hello all,

I have Dev a new pcb base on STM32h743IIT6 with the below hardware:

SDRAM: 256-W9825G6KH-6

FLASH  : 25Q256JVEN

LCD: Module LCD tactile capacitif RGB IPS de 7 pouces from LCwiki buy on aliexpress
( it's a native rgb888 no driver )
Total Hardware around : 70 euro.



Here is the FMC and LTDC config:

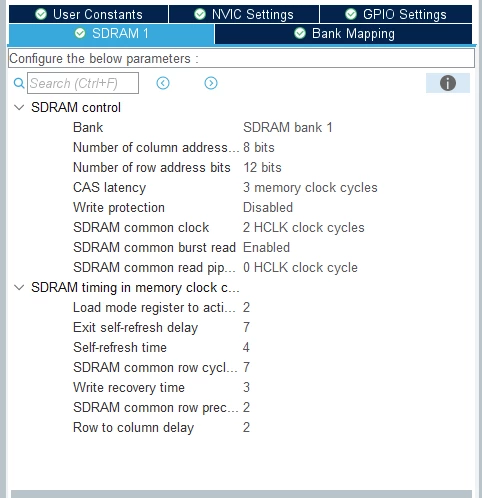

SDRAM:

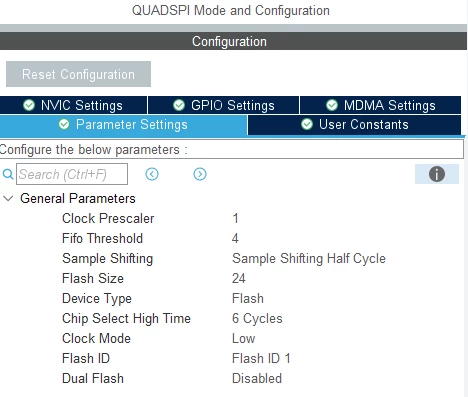

QSPI FLASH:

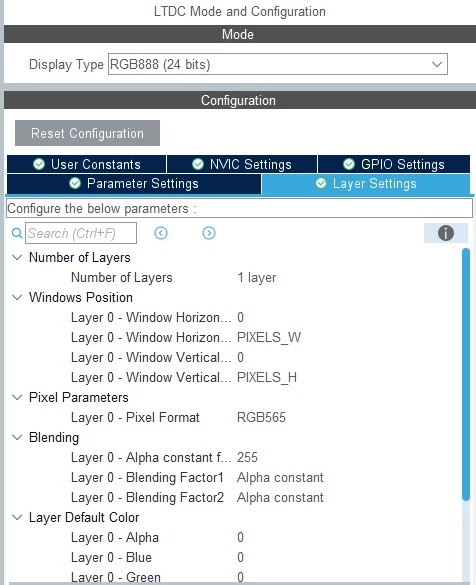

LTDC:

I have follow this post cube ide project https://github.com/JIU10/stm32h7_ltdc_dma2d/tree/master and it's work.
But now i am lost how to go further and i have some questions.

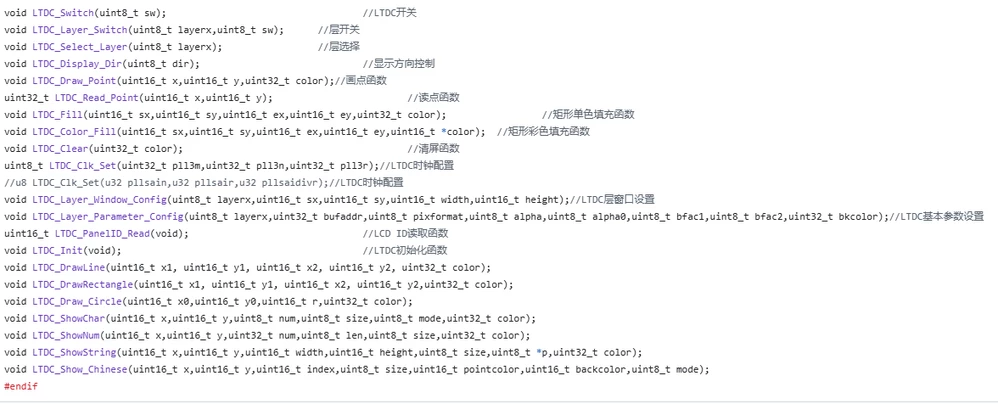

1 With the ltdc driver function below can i implement lvgl  if yes how can i do if they are some link ?



2 What is the best option to make and interactive lcd panel.
2 I am coming from esp32 world so I want my st32 lcd would work like famous  tftespi lib of Bodmer.

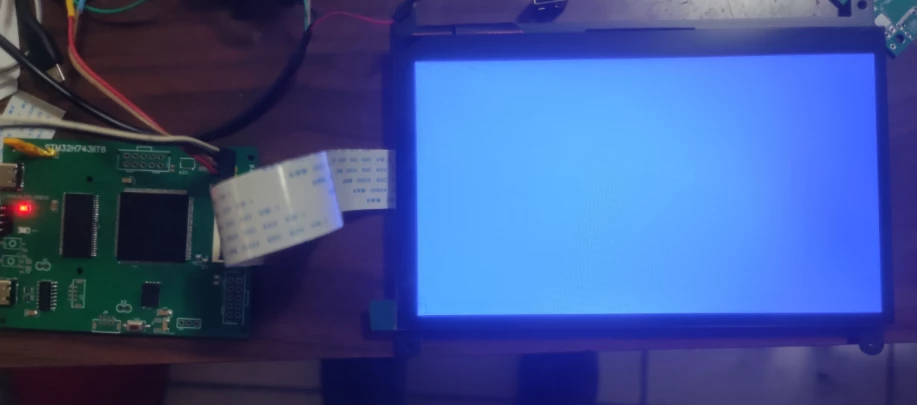

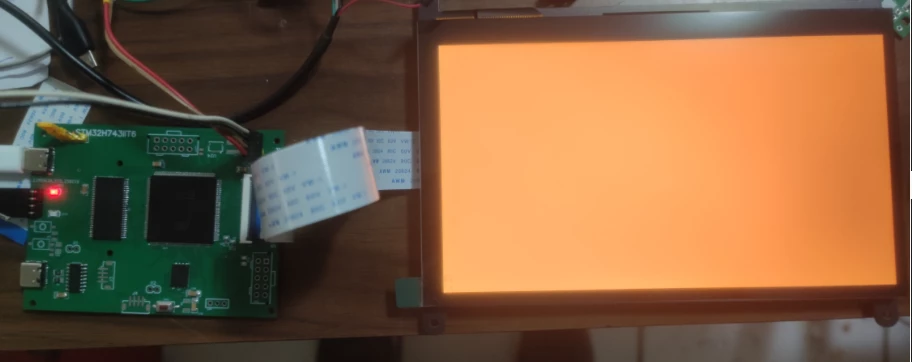

REF pcb Board rgb888 24

[mƎALLEm]

Hello,

You need to to find and read the LCD datasheet and refer to the application note AN4861 "Introduction to LCD-TFT display controller (LTDC) on STM32 MCUs" then adapt the LTDC parameters to the LCD specification or try to find if there was someone implemented it or provided its driver.

[KNaim.1]

I have allready read AN4861 i am in this configuration
Figure 4. Display module without controller nor GRAM and with external framebuffer sdram

The lcd is working  with ltdc driver function above now i am asking how to implement lvgl







[mƎALLEm]

LVGL is not an ST implementation. You need to contact LVGL on their forums: https://forum.lvgl.io/

[KNaim.1]

ok forget LVGL  i will stay on ST what about touchgfx for stm32h743ii ?

[mƎALLEm]

---

@KNaim.1 wrote:

ok forget LVGL  i will stay on ST what about touchgfx for stm32h743ii ?

---

For this new question please post it on the TouchGFX forum board, sSo the dedicated team can help you.
