How to program an Olimex STM32-E407

  • November 5, 2025
  • 3 replies
  • 450 views

I am having a hard time figuring out working with the STM32-E407 which is built on STM32F407ZGT6 MCU. I also brought an ARM-USB-TINY-H as it was recommended in its documentation. How and where do I start ? Say I want to interface this board with a radar sensor.

Best answer by Andrew Neil
@mk_stm wrote:
Does the nucleo board you suggested support MicroROS ?

No more nor less that the Olimex board would.

There are Nucleo boards for the whole range of STM32s - so pick one which has a suitable STM32 on it:

https://www.st.com/en/evaluation-tools/stm32-nucleo-boards/products.html



As @mƎALLEm suggested, you can check Zephyr board support here:

https://docs.zephyrproject.org/latest/boards/st/index.html



@mk_stm wrote:
I want to implement MicroROS with Zephyr RTOS.

That sounds a bit ambitious given your earlier questions?



But we digress from the original question.

If your original question has been answered, please Mark The Solution and start a new thread for a new question.

I saw this recently on Linkedin - A set of utilities for integrating micro-ROS in a STM32CubeMX project:

https://github.com/micro-ROS/micro_ros_stm32cubemx_utils





PS:

MicroROS lists a number of supported Nucleo boards here:

https://micro.ros.org/docs/overview/hardware/

But this (and Zephyr support) is not so much about the board as whether the software is available off-the-shelf and ready-to-go.

You can always do the porting yourself ...

3 replies

mƎALLEm
mƎALLEm
Technical Moderator
November 5, 2025

Hello @mk_stm and welcome to the community,

That board is not an ST board.

Did you ask that question in Olimex community: https://www.olimex.com/forum/index.php  ?

"To give better visibility on the answered topics, please click on ""Accept as Solution"" on the reply which solved your issue or answered your question."
    Andrew Neil
    Andrew Neil
    Super User
    November 5, 2025

    Welcome to the forum.

    Please see  How to write your question to maximize your chances to find a solution for best results.



    As neither the STM32-E407 board nor the ARM-USB-TINY-H is an ST product, you should really be going to Olimex for support with their products:

    support@olimex.com

    https://www.olimex.com/forum/



    You haven't said what tools you're using to program this board.

    The ST tools are STM32CubeIDE and STM32CubeProgrammer - I think neither of them supports the ARM-USB-TINY-H.

    I would suggest that you get an ST-Link; they are widely supported (unlike the ARM-USB-TINY-H) - and cheaper!

    Just be sure to get a genuine one.

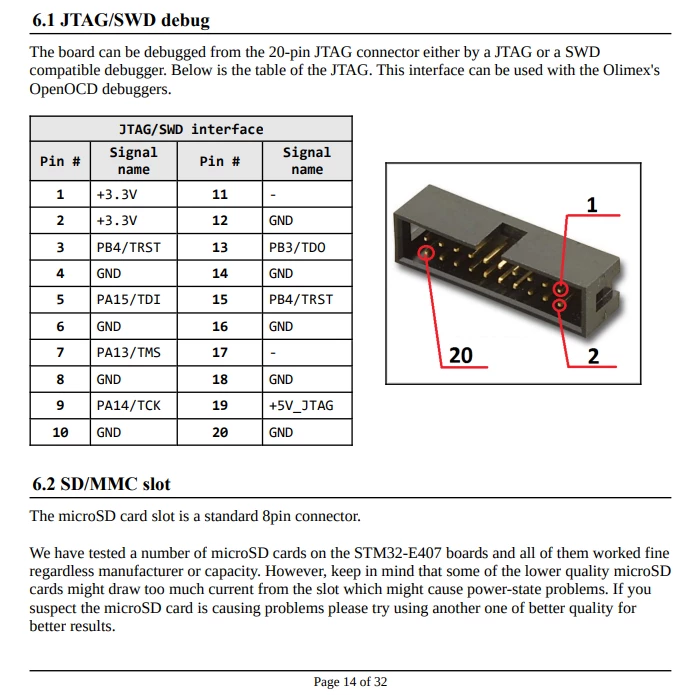

    The board's debugger pinout is described in the User Manual:


    https://www.olimex.com/Products/ARM/ST/STM32-E407/resources/STM32-E407.pdf#page=14

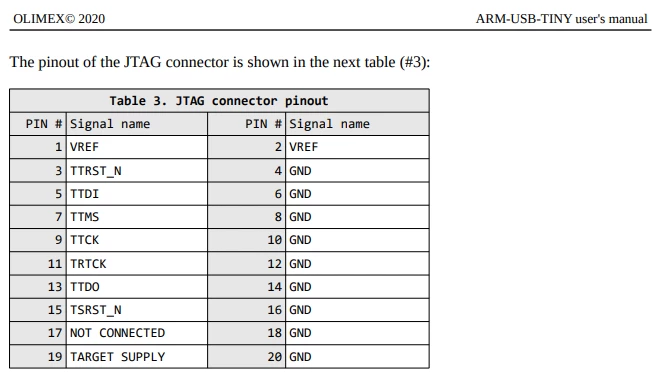

    It matches the pinout of the ARM-USB-TINY-H - so you can just plug it in:


    https://www.olimex.com/Products/ARM/JTAG/_resources/ARM-USB-TINY_and_TINY_H_manual.pdf#page=10



    For a beginner getting started, I would strongly suggest that a Nucleo board would be a far more appropriate starting point; eg, NUCLEO-F411RE as this includes the ST-Link - so no need to mess about with connecting and configuring it.

    And it's cheaper.

    And it gives you a well-known, widely-used platform with plenty of ready-to-go examples, tutorials, etc.





    A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
      M
      mk_stmAuthor
      Associate
      November 5, 2025
      Does the nucleo board you suggested support MicroROS ? I want to implement
      MicroROS with Zephyr RTOS.
      mƎALLEm
      mƎALLEm
      Technical Moderator
      November 5, 2025
      @mk_stm wrote:
      Does the nucleo board you suggested support MicroROS ? I want to implement
      MicroROS with Zephyr RTOS.

      It was listed in this link (Zephyr link):

      https://docs.zephyrproject.org/latest/boards/st/nucleo_f411re/doc/index.html

      So it supports Zephyr RTOS

      "To give better visibility on the answered topics, please click on ""Accept as Solution"" on the reply which solved your issue or answered your question."
        Ozone
        Ozone
        Principal
        November 5, 2025

        > I am having a hard time figuring out working with the STM32-E407 which is built on STM32F407ZGT6 MCU.

        The board is fine. The debug connector is the 20-pin boxed header standardized by ARM. The standalone ST-Link and the Segger JLink pods come with such a cable, if I remember correctly.

        > I also brought an ARM-USB-TINY-H as it was recommended in its documentation.

        This might be a problem, because you need a toolchain that supports this debug adapter for flashing and debugging.
        Connect it to the host, and exeute the 'lsusb' command (or whatever the Windows equivalent is ...). Probably a CMSIS-DAP.
        Years ago I had used Crossworks for Arm, which supported this adapter directly.
        CubeIDE might as well, you will need to check.
        OpenOCD most probably, but I have no experience with it under Windows.
        Although not so long ago, I flashed an Atmel M7 board with their onboard CMSIS-DAP version, which worked fine.
