No Stm32 target found !

[toto]

Hello All,

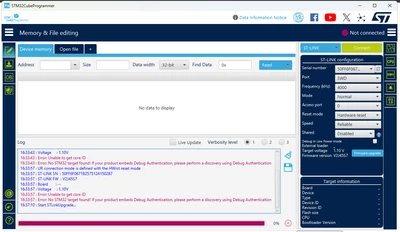

I'm using an ST Link V2 B 2024 41 box bought on Digikey to program a sensor, and when I want to connect I get a ‘No Stm 32 target found! ’

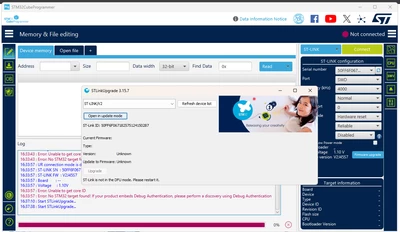

The software seems to see the ST box with its serial number.

What should I do?

Thanks for your feedback, have a good day

[Peter BENSCH]

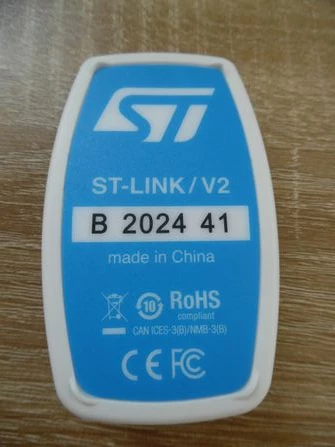

Please post a photo of the back of your ST-LINK/V2.

Regards
/Peter

[TDK]

With a target voltage of 1.10 V, your board isn't going to be running.

You will need to power the board separately. The programmer typically does not provide power.

[toto]

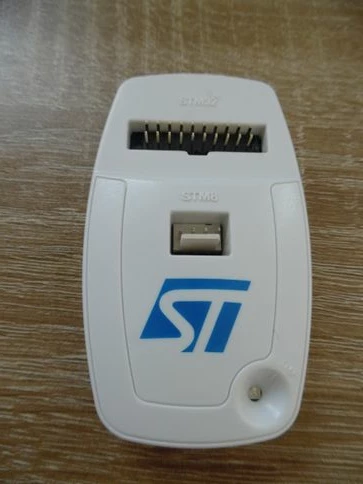

@Peter BENSCH here are some pictures

@TDK I'm on a laptop, with a fixed pc it should work? or do you need a powered usb hub? it's weird, I used to be able to program with this pc.
thanks

[TDK]

The computer and the usb hub are not the issue here. You have to power the board outside of the USB connection.

How is your board powered when the debugger is not present? Do that.

[Andrew Neil]

Please give details of your hardware - see: How to write your question to maximize your chances to find a solution.

Some good, clear photos could help.

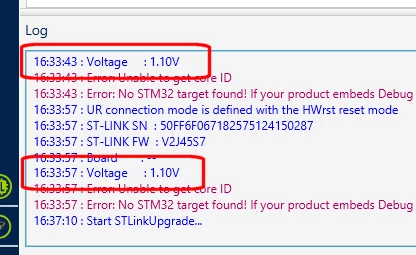

Your log shows that your target has insufficient supply voltage:

At that voltage, the target can't run - so it can't communicate with the debugger.



How to solve connection errors when connecting and programming the STM32 target board.

see also: https://community.st.com/t5/stm32-mcus/how-to-solve-debugger-connection-issues/ta-p/49693



Did you fix your previous problem: https://community.st.com/t5/stm32cubeprogrammer-mcus/error-no-stm32-target-found-i-and-st-link-is-not-in-the-dfu-mode/td-p/693580 ?

[toto]

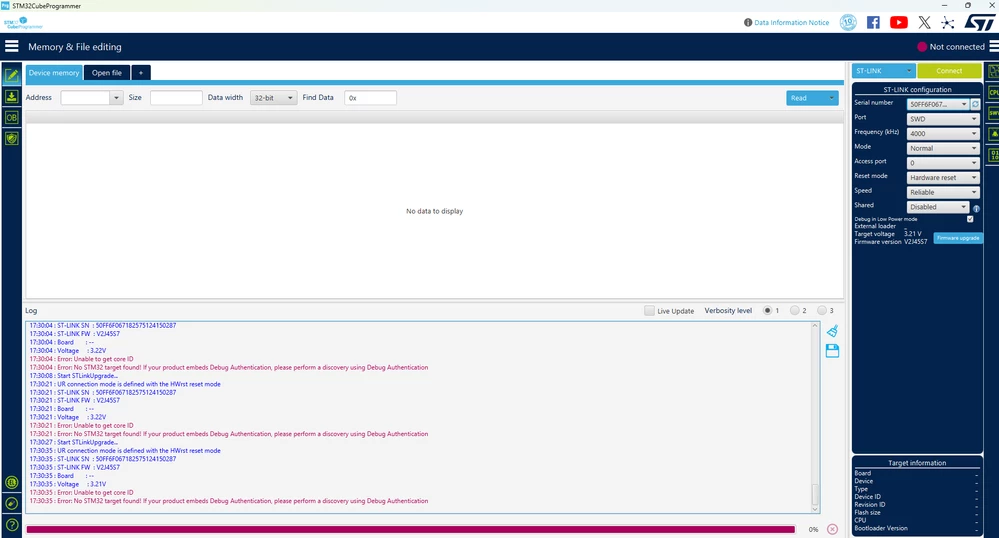

I waited for the 230V sensor to start up, then the 5V communication card, and there it was, I now have 3.3V :

Thanks

[Peter BENSCH]

What target you're trying to connect to?
